A weak flow, repeated cycling, or a pump that will not start can point to a freshwater-system problem. Before replacing a pump, identify the part already installed and check the system around it. A replacement must match more than the RV make and model.
Start with the numbers on the existing pump

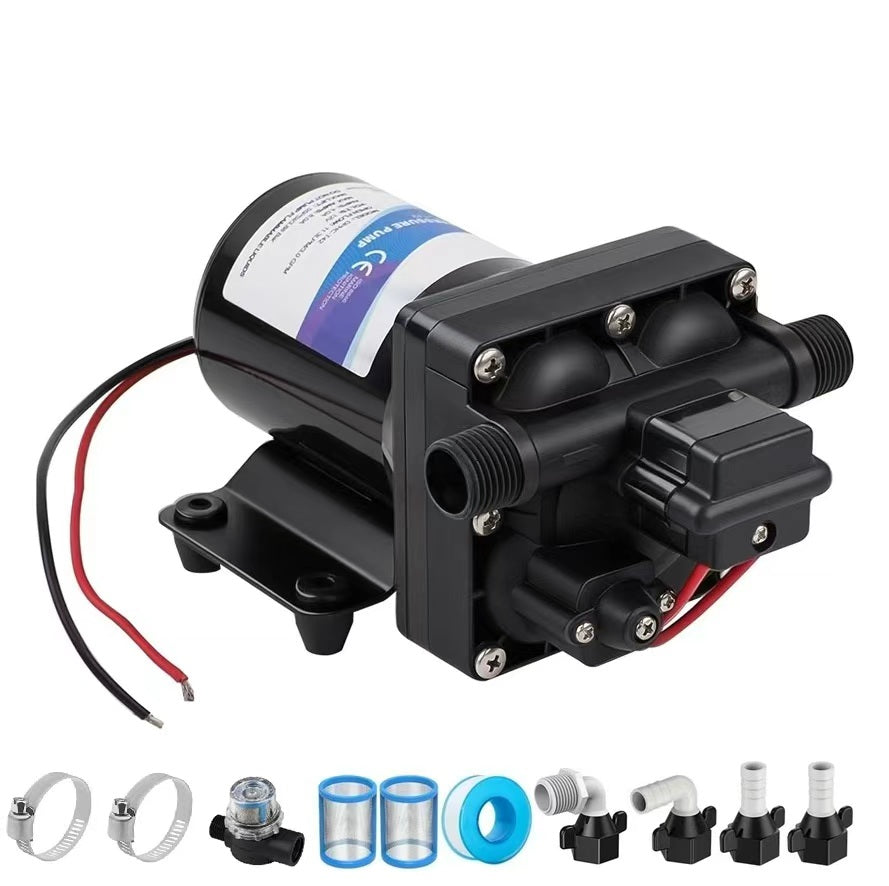

Record the voltage, pressure rating, flow rating, port type, physical dimensions, wiring connection, and mounting pattern. The Vypart 12V RV Water Pump 3.0 GPM 55 PSI replacement for 4008 101 A65 is a four-chamber diaphragm pump for compatible 12V freshwater systems. Its 3.0 GPM flow rating, 55 PSI rating, and 1/2-inch NPSM ports should be compared with the original installation before ordering.
Check the system before blaming the pump
- Verify battery voltage, fuse condition, ground connection, and switch operation.
- Inspect the strainer, inlet hose, and tank pickup for blockage or air leaks.
- Look for leaks at fittings that can cause cycling when no faucet is open.
- Confirm that the application is a freshwater or general water-transfer system. Do not use this type of pump with fuel, solvents, or other flammable liquids.
Match the replacement to the job
Water-system parts and slide-out parts serve different RV systems. If your repair involves room movement rather than water flow, first identify the drive architecture: a 236575 300:1 Schwintek slide-out motor is for confirmed in-wall applications, while the 132682 / RP785615 18:1 through-frame motor is for confirmed compatible through-frame systems. For BAL Accu Slide cable-driven systems, compare the original assembly with the 225008 motor and gearbox assembly.
Installation checklist
Disconnect power before installation. Confirm hose orientation, use compatible fittings, inspect every connection for leaks, and test operation with water available to the pump. If mounting holes or wiring differ from the original unit, resolve that difference before final installation.
Key takeaway: choose a freshwater-pump replacement by verified electrical, hydraulic, and physical specifications—not by the RV year alone.
