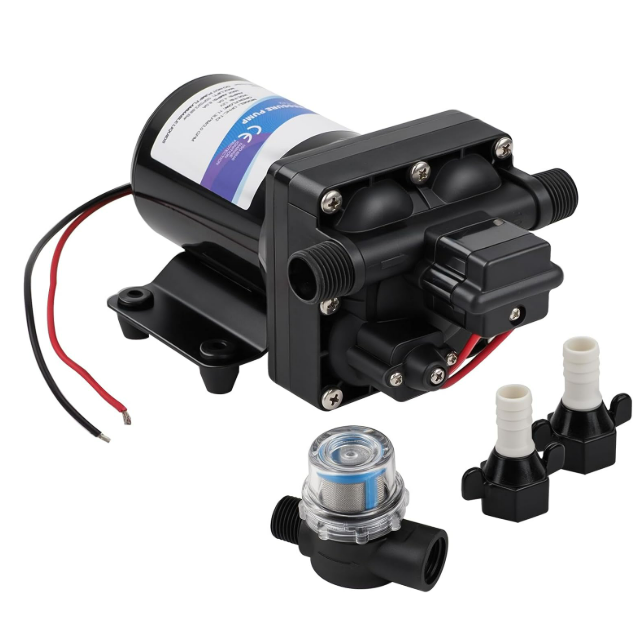

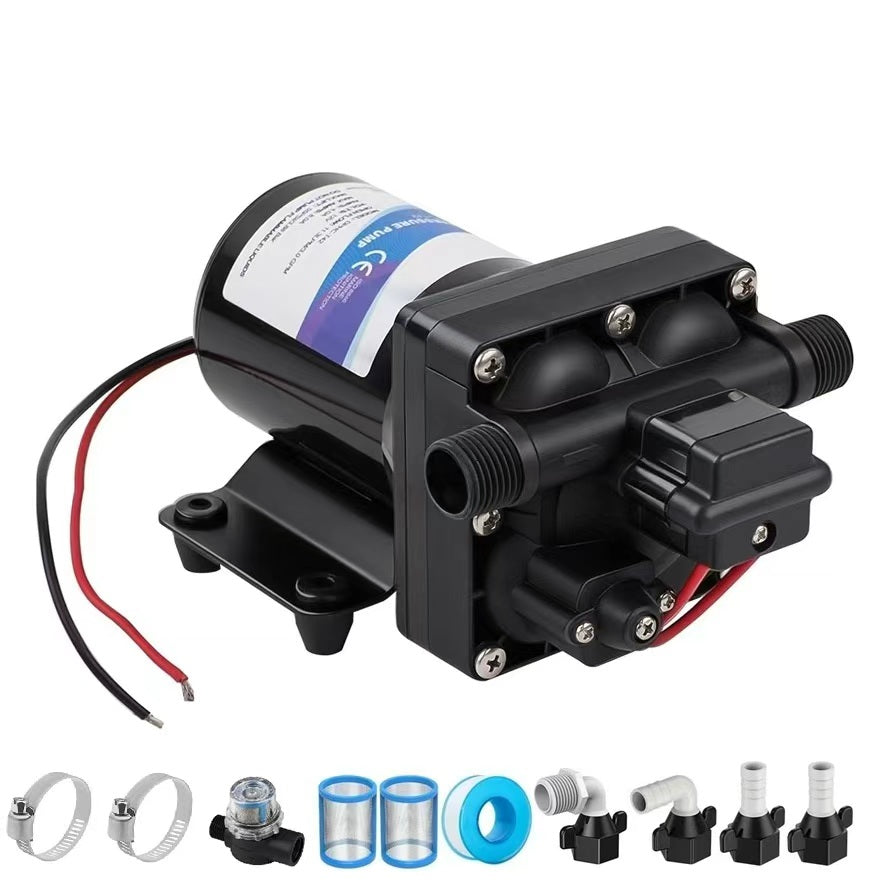

Vypart 12V RV Water Pump 3.0 GPM 55 PSI Replacement for 4008 101 A65

Reliable Water Flow for RV Systems
This 12V diaphragm water pump delivers up to 3.0 GPM with a 55 PSI pressure rating. It is designed for RVs, campers, travel trailers, food trucks, boats and other compatible 12V freshwater systems.

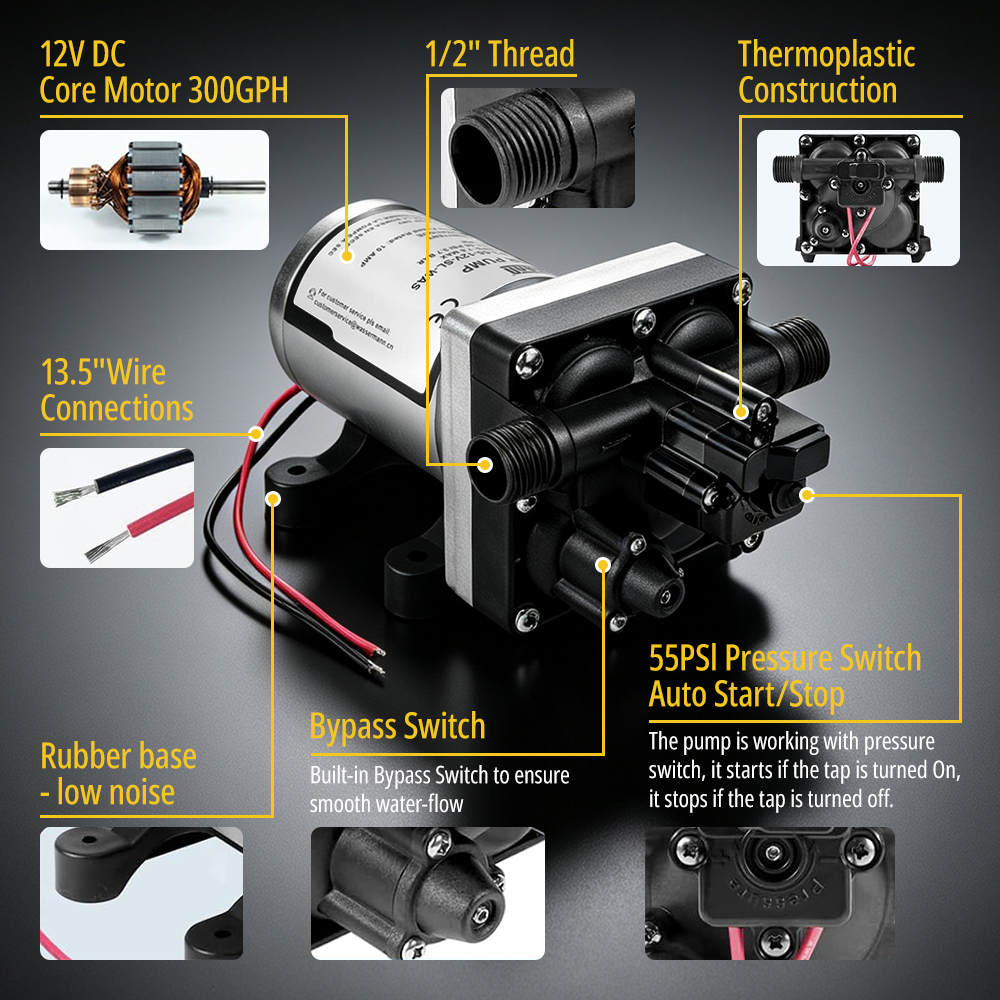

Package Includes (same as pic)
1 RV Water Pump
1 Twist On Inlet Strainer
Quick Connect Fittings
1 Hex Screwdriver
Reference Models
4008 101 A65
4008 101 E65

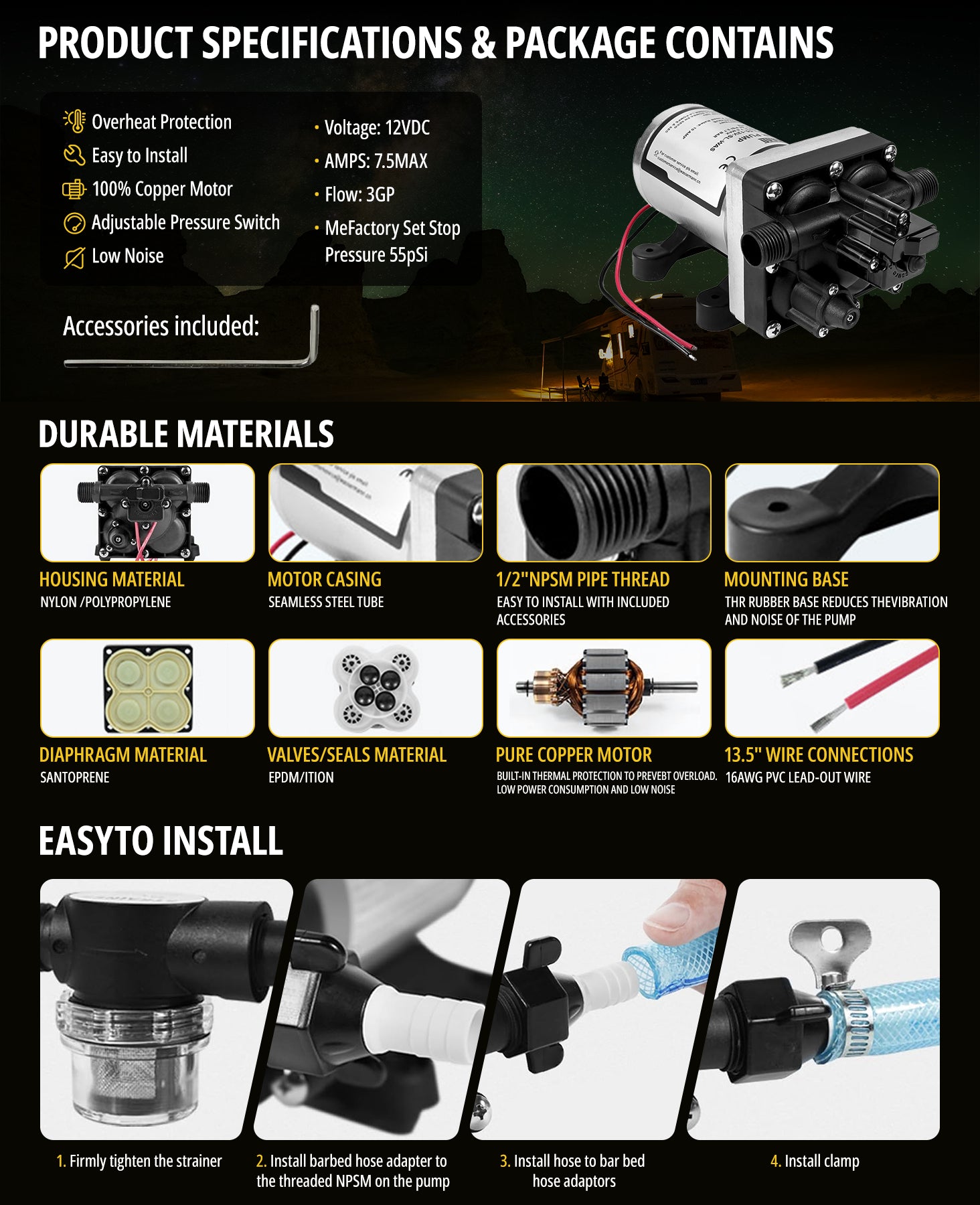

Product Specifications
Voltage 12V DC
Maximum Flow Rate 3.0 GPM
Maximum Flow Rate 11.4 LPM
Pressure Rating 55 PSI
Pump Type 4 Chamber Diaphragm Pump
Port Size 1 Half Inch NPSM
Power Source 12V Battery or Electrical System

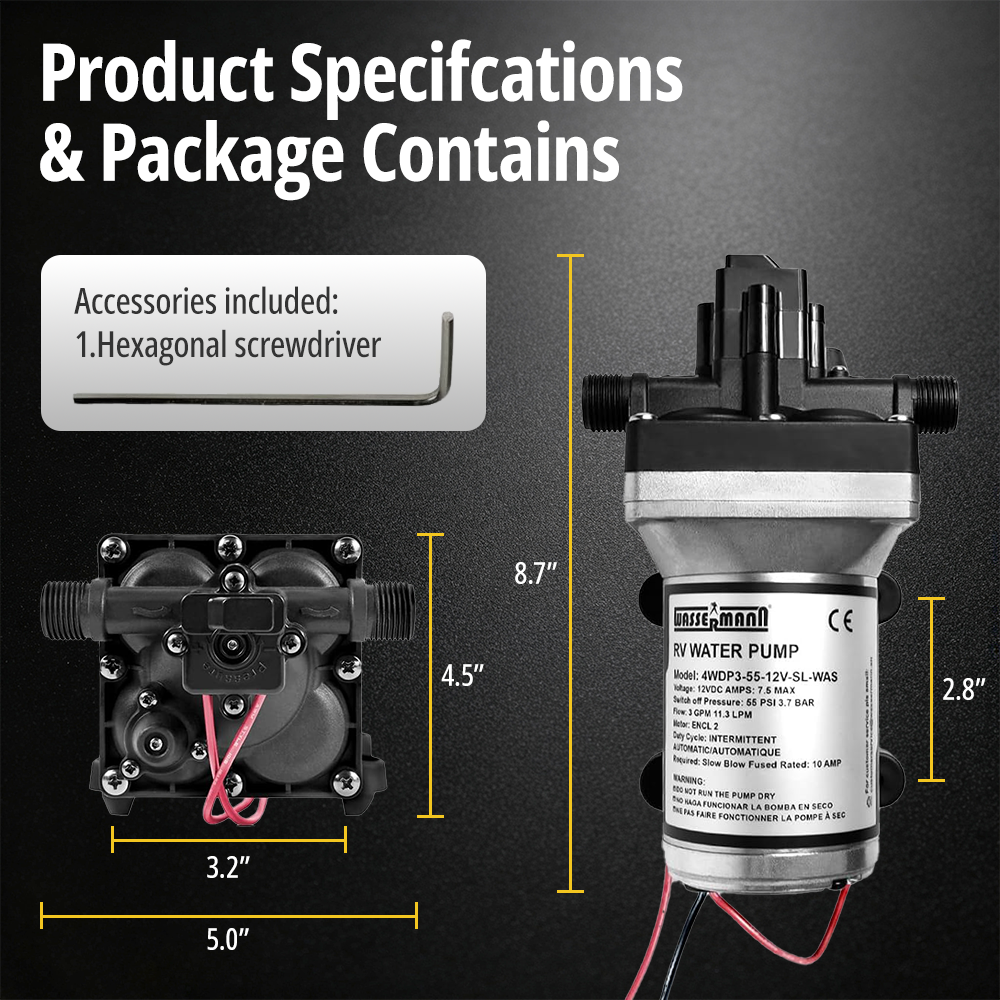

Product Dimensions 10.55 x 5.31 x 5.04 Inches
Automatic Pressure Control
The integrated pressure switch starts the pump when a faucet is opened and stops it when the faucet is closed. This on demand operation helps maintain water pressure while reducing unnecessary power use.
Smooth Water Delivery
The four chamber diaphragm and internal bypass design help provide consistent water flow while reducing rapid cycling during normal operation.

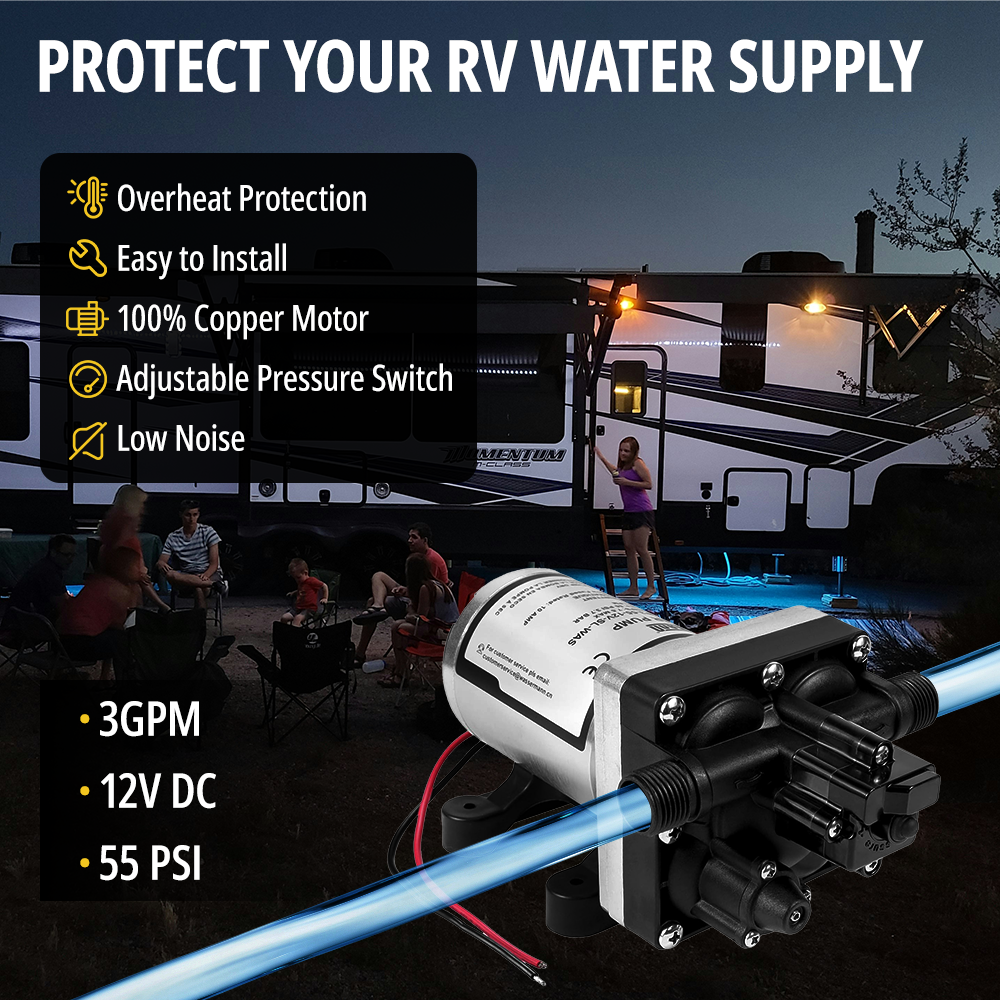

Built In Protection
Integrated thermal protection helps protect the motor during demanding operating conditions. The pump housing is designed for use in mobile water supply systems.
Flexible Applications
Suitable for compatible RVs, campers, travel trailers, motorhomes, boats, food trucks, cabins, garden sprayers and other 12V water systems.

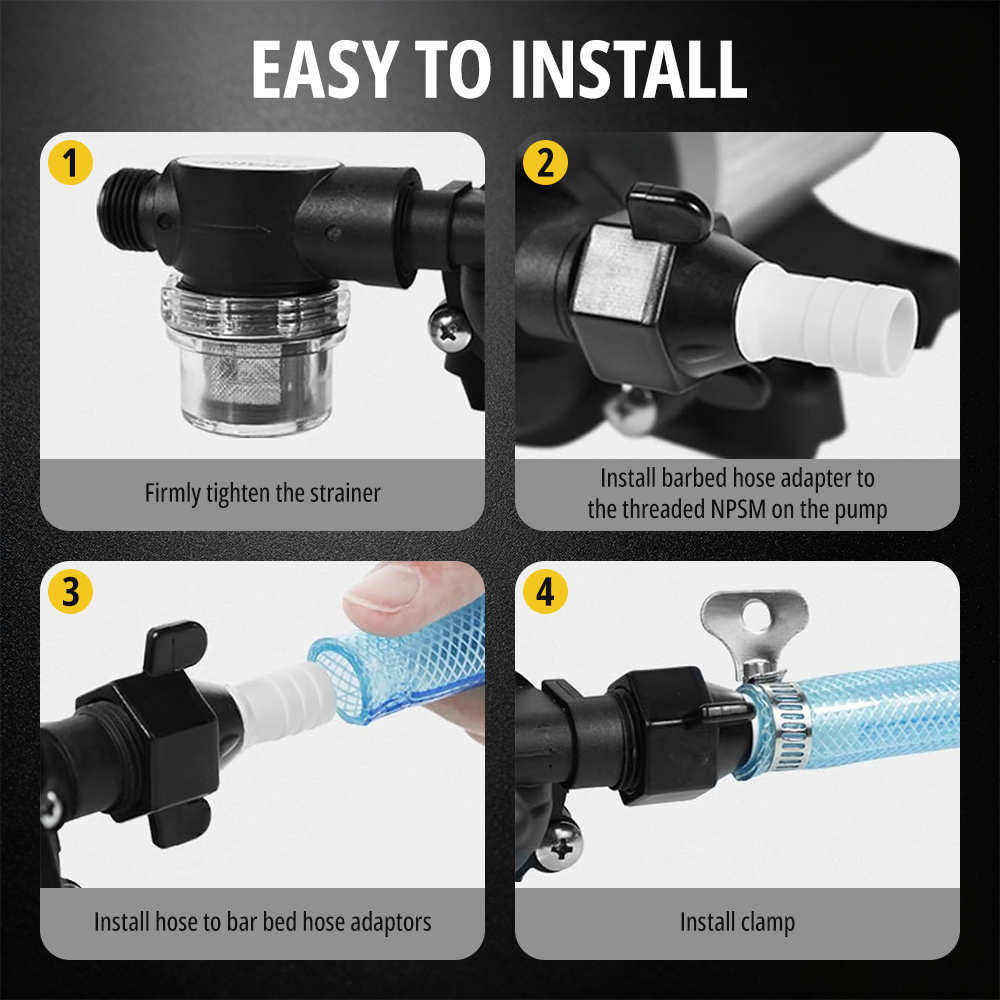

Installation Notice
Compare the voltage, flow rate, pressure rating, port size, wiring, dimensions and mounting points with the existing pump before ordering. This replacement may require changes to the mounting holes or wiring connections depending on the original installation.
Important Safety Notice
Use only with compatible freshwater and general water transfer systems. Do not use with gasoline, fuel, solvents or other flammable liquids. Disconnect the power supply before installation and inspect all connections for leaks before operation.
