Vypart 132682 RV Slide Out Motor 18 to 1 for Lippert Through Frame Systems

Replacement Motor for RV Slide Out Systems
The Vypart 132682 slide out motor is designed for compatible Lippert electric through frame slide out systems. It provides the power needed to extend and retract compatible RV slide out rooms.
Package Includes
1 RV Slide Out Motor Assembly
Actuator and Complete Slide Out Assembly Not Included

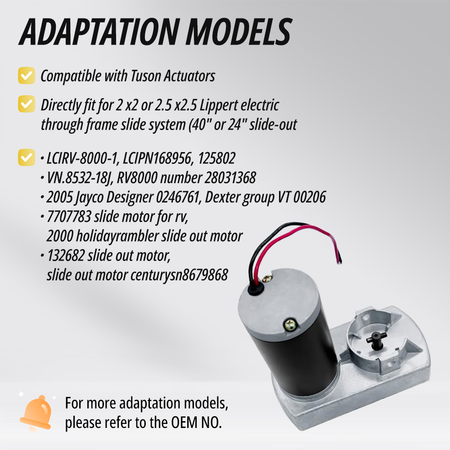

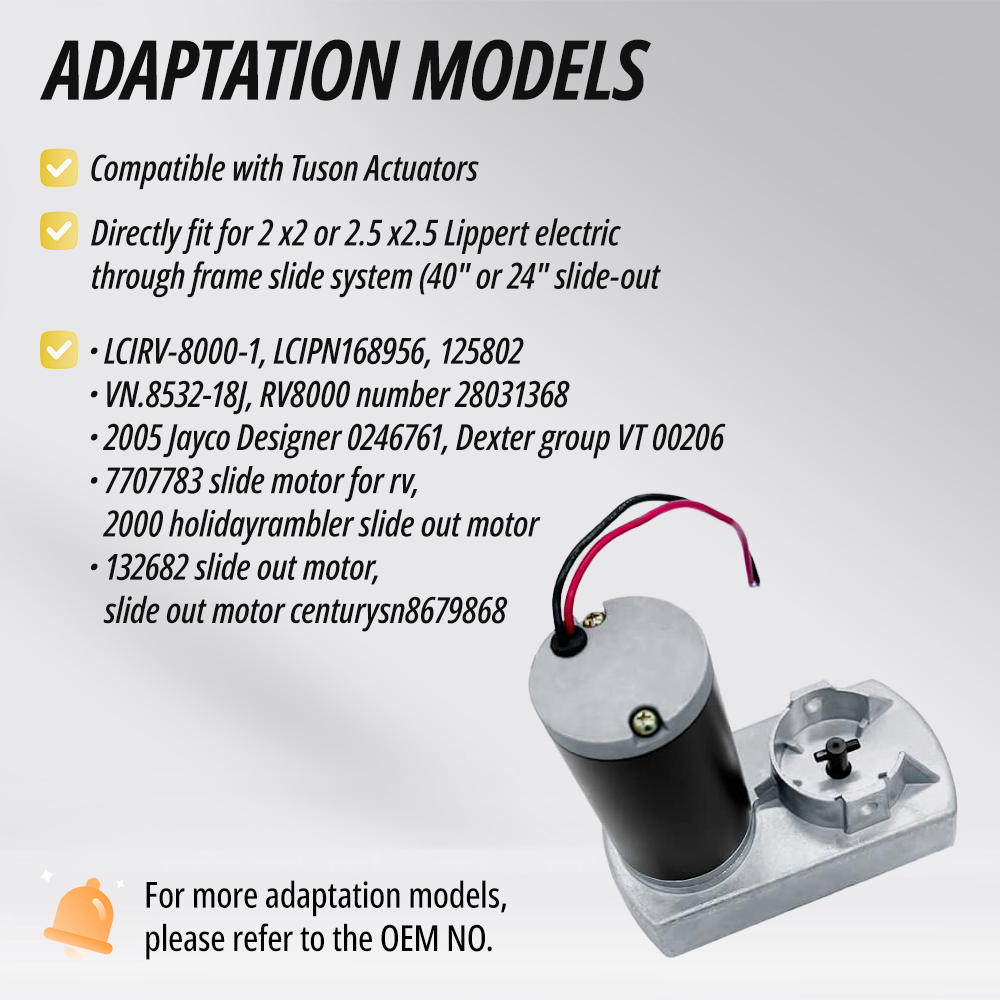

Compatible Systems
Compatible with 2 x 2 Lippert Electric Through Frame Slide Out Systems
Compatible with 2.5 x 2.5 Lippert Electric Through Frame Slide Out Systems
Compatible with Selected Tuson Actuators
Designed for Selected 24 Inch and 40 Inch Slide Out Room Applications

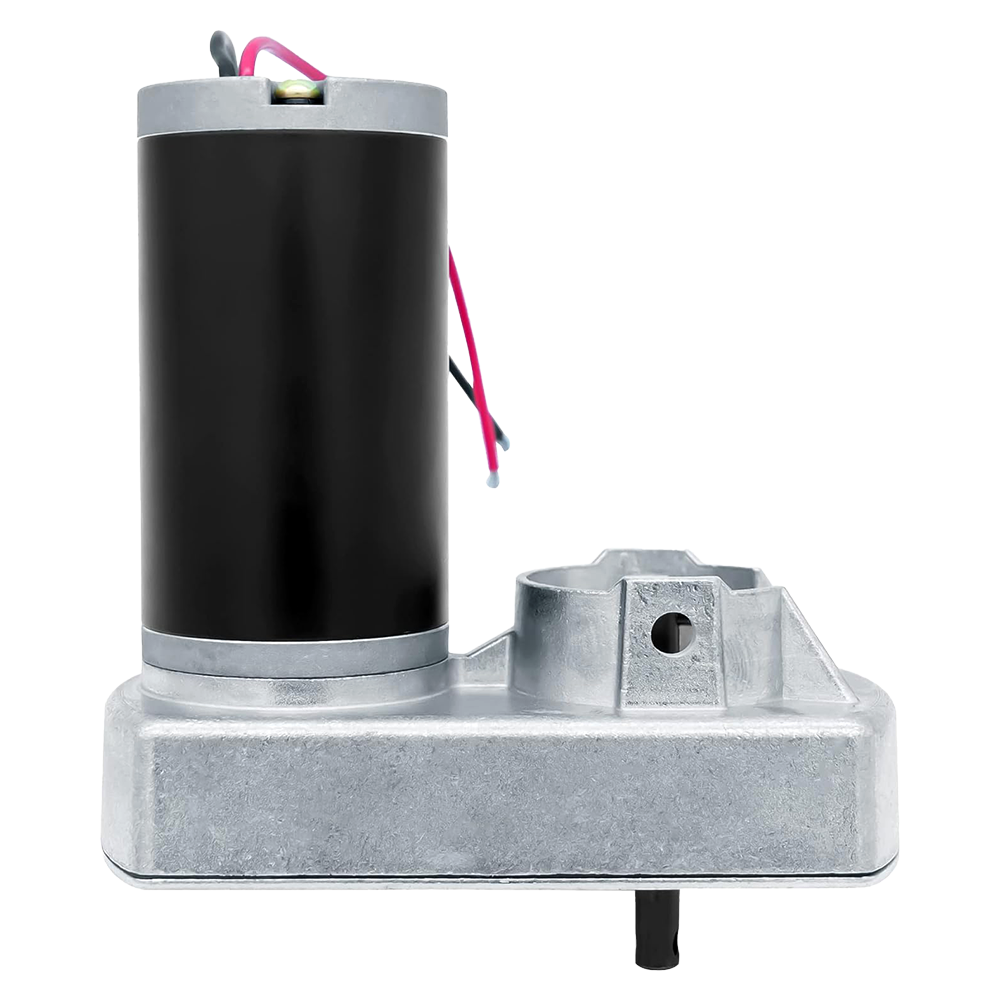

Reference Part Numbers
132682
7694597
RP785615
M8910

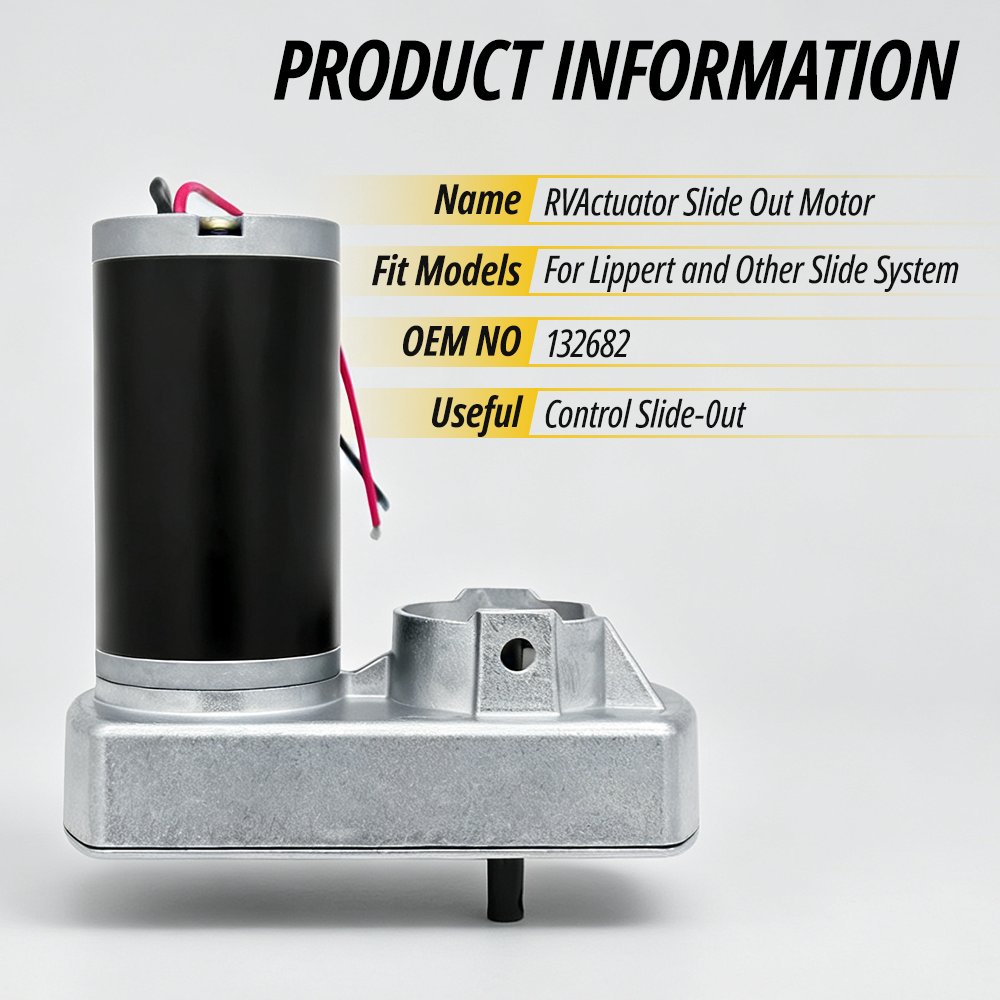

Product Specifications
Voltage 12V DC
Maximum Current 30 Amps
Motor Speed 5800 RPM
Gear Ratio 18 to 1
Product Type Slide Out Motor Without Actuator
Restore Slide Out Operation
This replacement motor helps restore the extension and retraction function of a compatible RV slide out room when the original motor is worn or damaged.
Direct Replacement Design

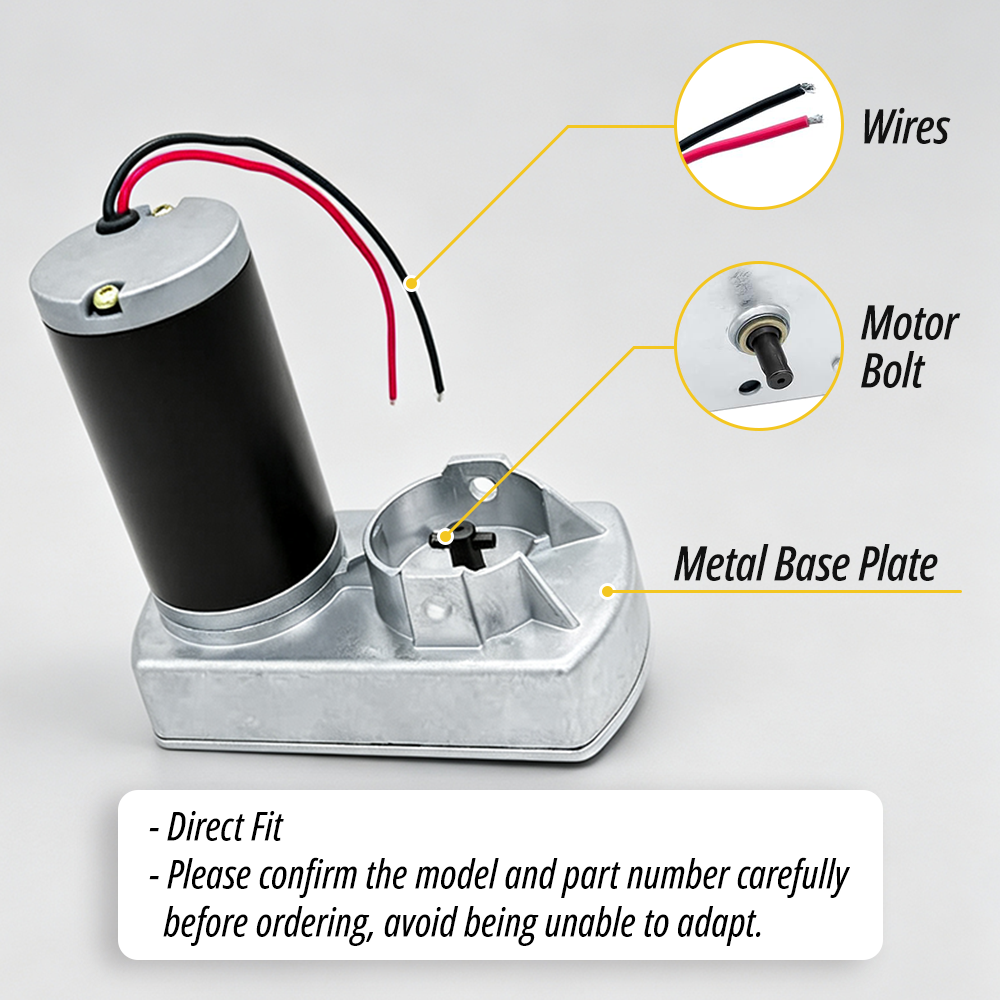

The motor is designed to connect with the existing wiring, mounting bolts and compatible actuator assembly after the correct part number and specifications have been confirmed.
Built for RV Applications
Suitable for compatible motorhomes, fifth wheels, travel trailers and campers equipped with an electric through frame slide out system.
Important Compatibility Notice
This motor is not universal. Confirm the original motor part number, 18 to 1 gear ratio, 12V DC voltage, 5800 RPM speed, connector, mounting points and actuator type before ordering.
Motor Only Configuration
This package contains the motor assembly only. The actuator, drive shaft, mounting hardware and complete slide out mechanism are not included unless shown in the package images.
Speed Verification Required
Some motors associated with part numbers 168956 and 295380 use a different 9500 RPM specification or include an actuator. Do not use those numbers alone to confirm compatibility.
Installation Recommendation
Disconnect the RV power supply before installation. Support the slide out room according to the service manual and verify motor direction before completing installation. Professional installation is recommended.
Product Notice
This is an aftermarket replacement product. It is not manufactured or sponsored by Lippert, Venture or Tuson. Brand names and part numbers are used only to identify compatibility.
