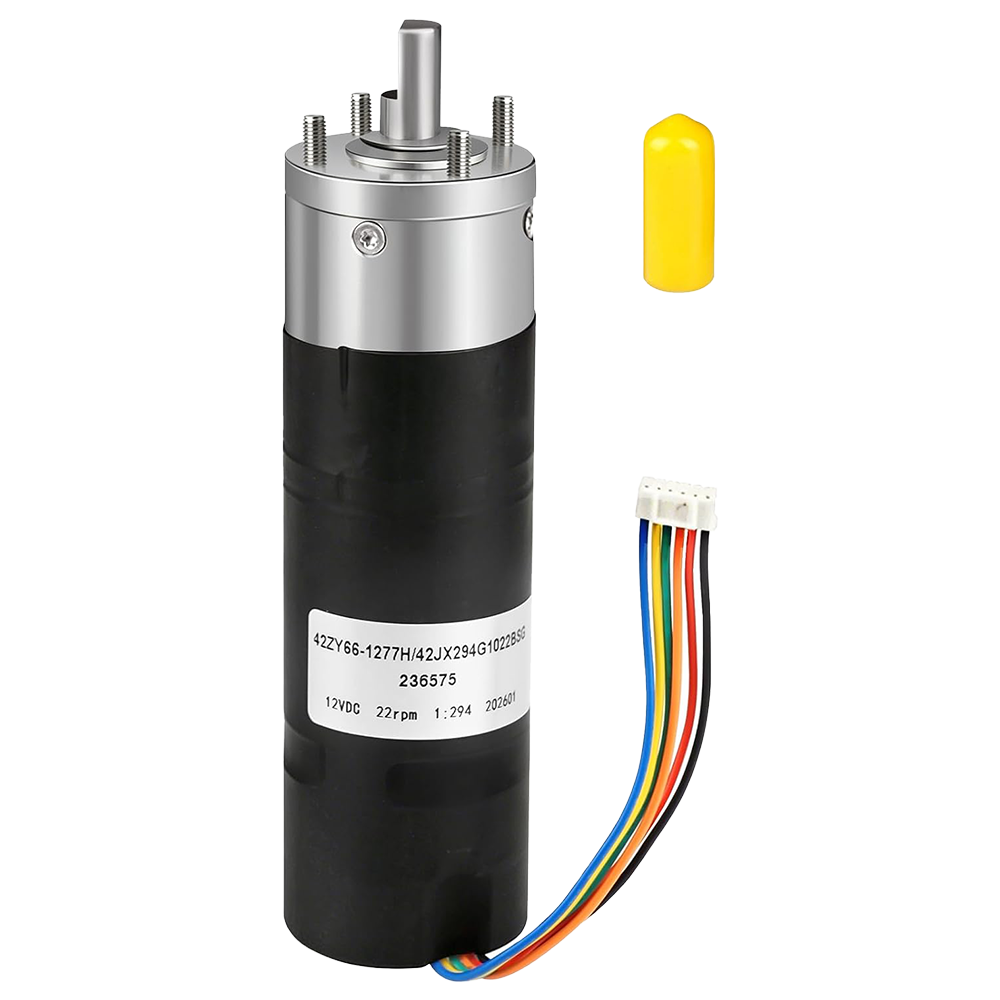

Vypart 236575 300 to 1 RV Slide Out Motor for Lippert Schwintek

Product Overview
This 12V RV slide out motor is designed for compatible Lippert Schwintek In Wall slide out systems using the 236575 IG-42 10 mm motor configuration and a 300 to 1 gear ratio. It provides an aftermarket replacement option when the original motor has been correctly diagnosed as faulty.
Package Includes

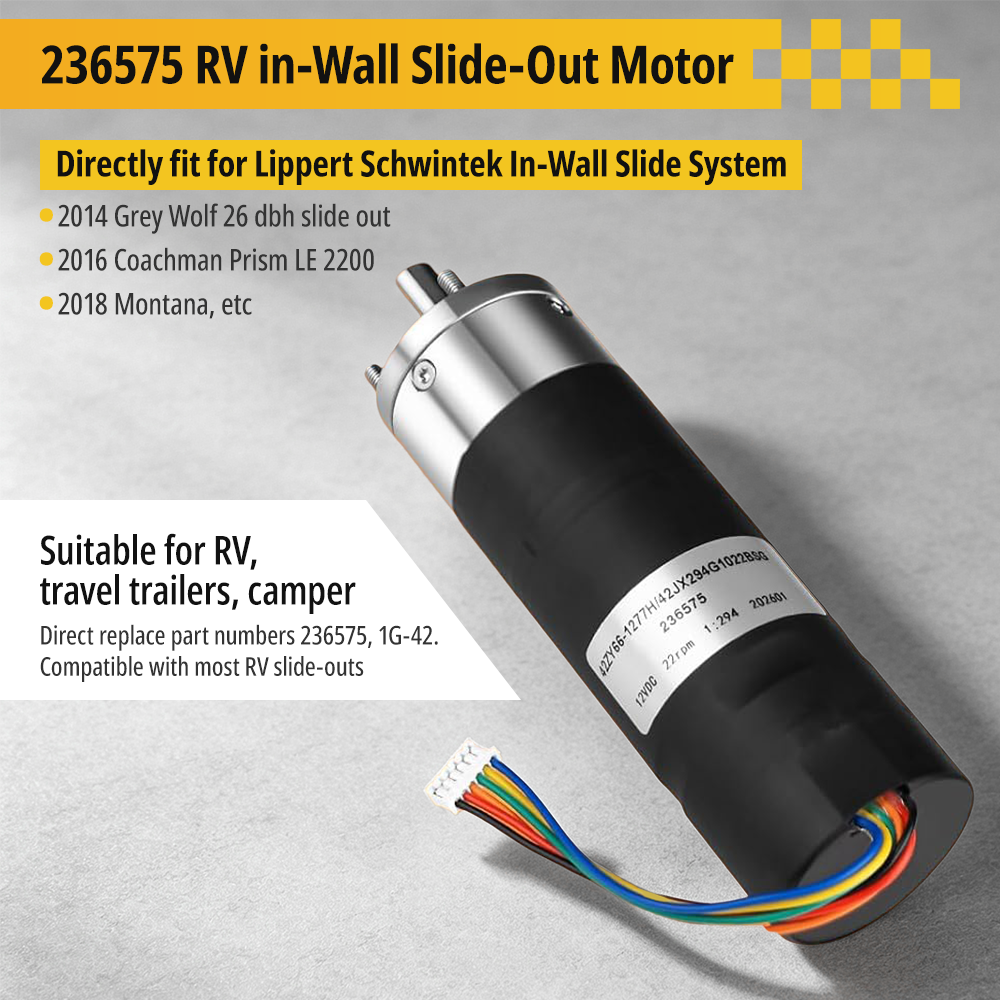

1 RV In Wall Slide Out Motor Assembly
1 Integrated Wiring Harness
1 Rubber Protective Cover
Compatible Applications
Designed for select Lippert Schwintek In Wall slide out systems installed on RVs, travel trailers, fifth wheels, and campers. This motor is not compatible with every RV slide out system.
Reference Part Numbers
236575
IG-42
375369

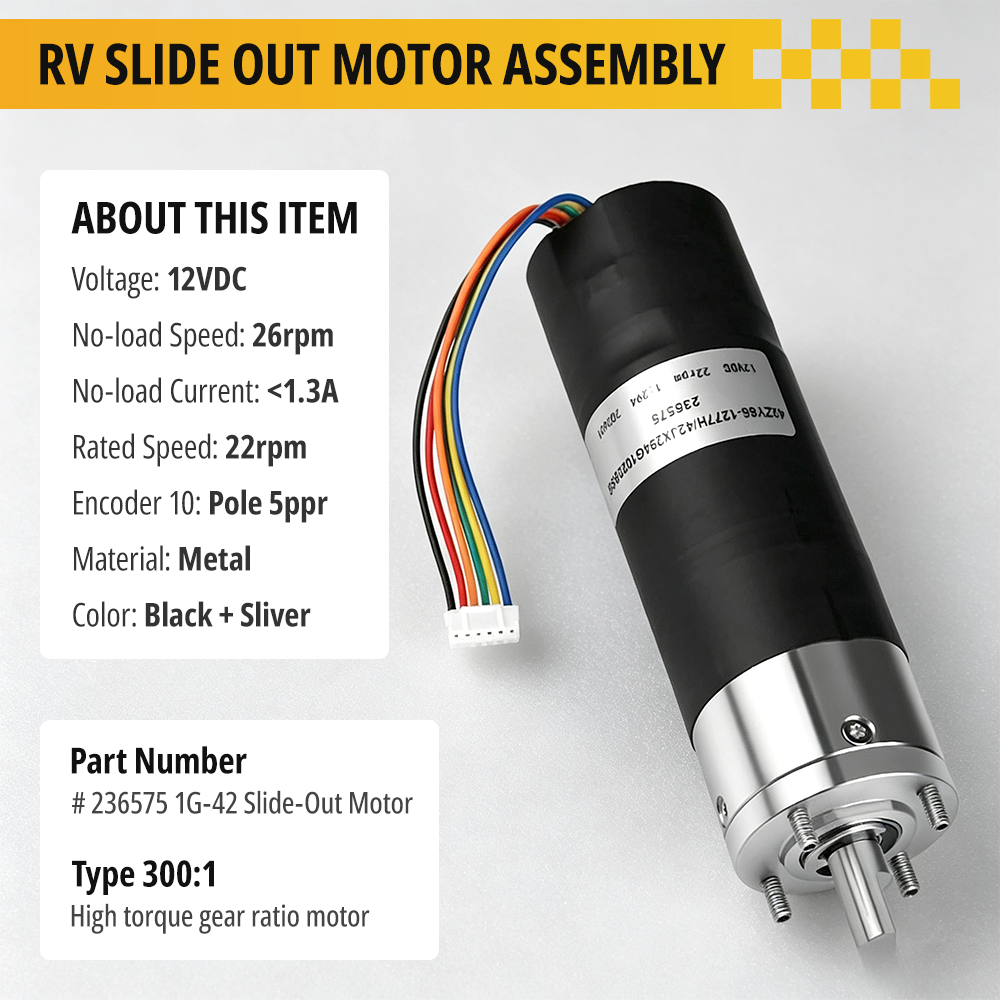

Product Specifications
Voltage 12V DC
Gear Ratio 300 to 1

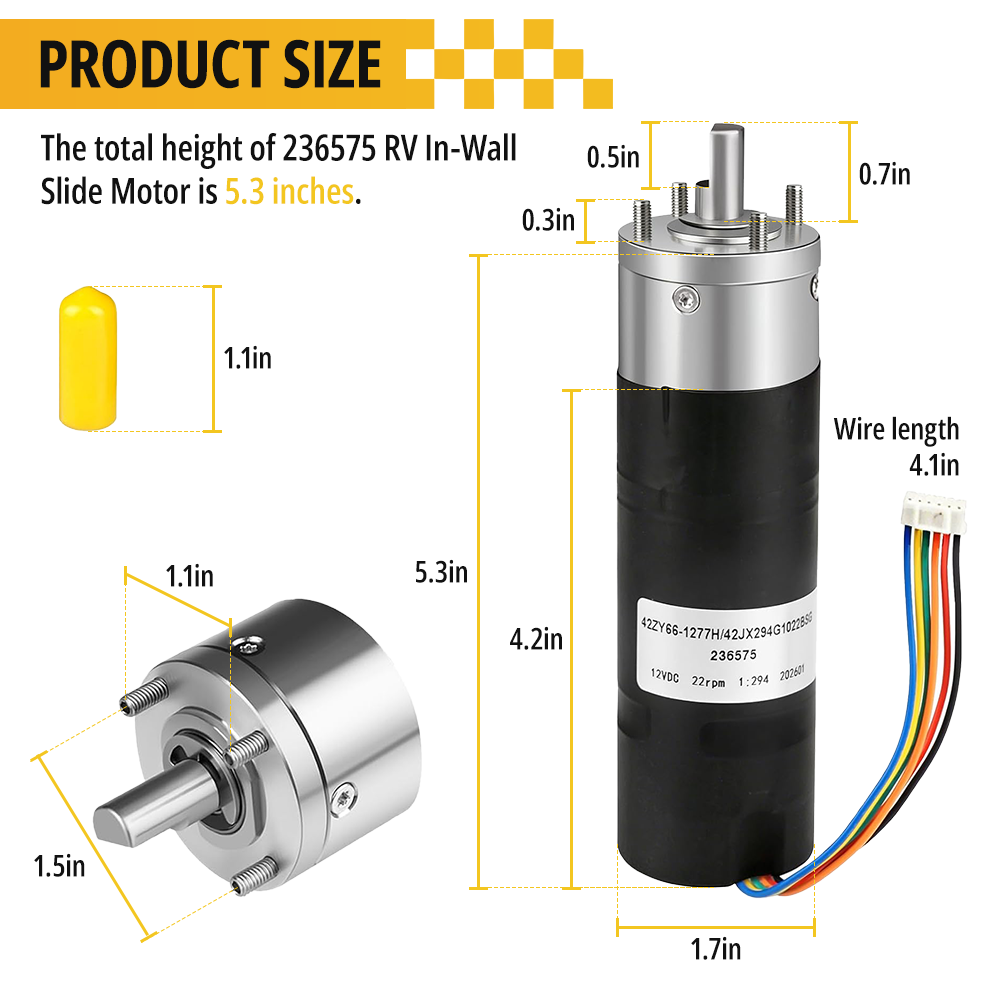

Shaft Size 10 mm
Rated Speed 22 RPM
No Load Speed 26 RPM
No Load Current Less Than 1.3 Amps
Encoder 10 Pole 5 Pulses Per Revolution
Compact In Wall Design

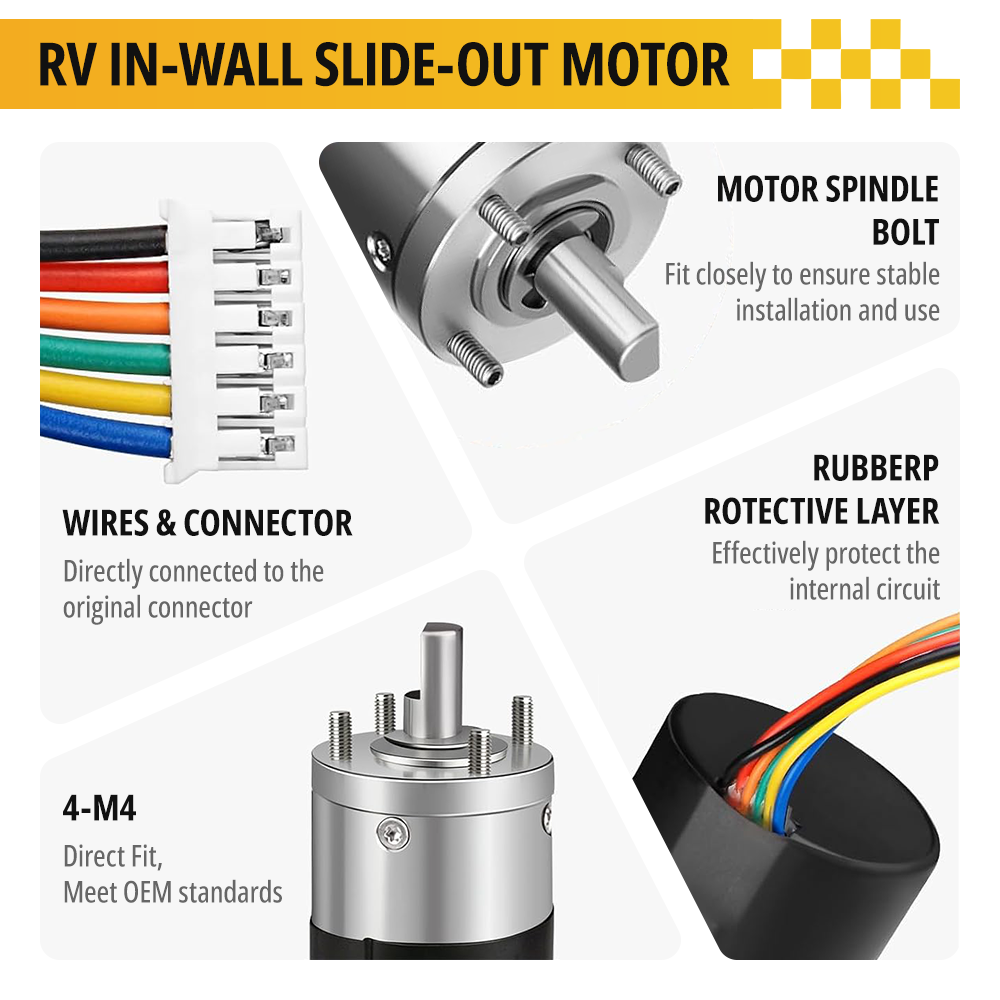

The motor assembly is designed for installation inside compatible Schwintek slide out columns. The integrated wiring harness is configured for confirmed 236575 applications, while the rubber cover helps protect the motor connection area.
Common Replacement Signs
The slide room does not fully extend or retract
The motor hesitates or stops during operation
The slide out produces unusual motor noise
The motor overheats under load
The room moves unevenly or falls out of synchronization
Diagnostic Reminder
These symptoms may also be caused by low voltage, damaged wiring, controller faults, obstructions, worn gear racks, or synchronization problems. Inspect the complete slide out system before replacing the motor.
Important Compatibility Notice
Before ordering, confirm the 236575 or IG-42 identification, 10 mm shaft, 300 to 1 gear ratio, wiring connector, motor housing, mounting configuration, and controller compatibility. Do not select this product using only the RV make, model, or year.
This motor is not a replacement for the 287298 500 to 1 high torque motor or the 240015 IG-42 5 mm motor. It is also not intended for hydraulic, cable driven, through frame, or other slide out systems unless the original specifications match.

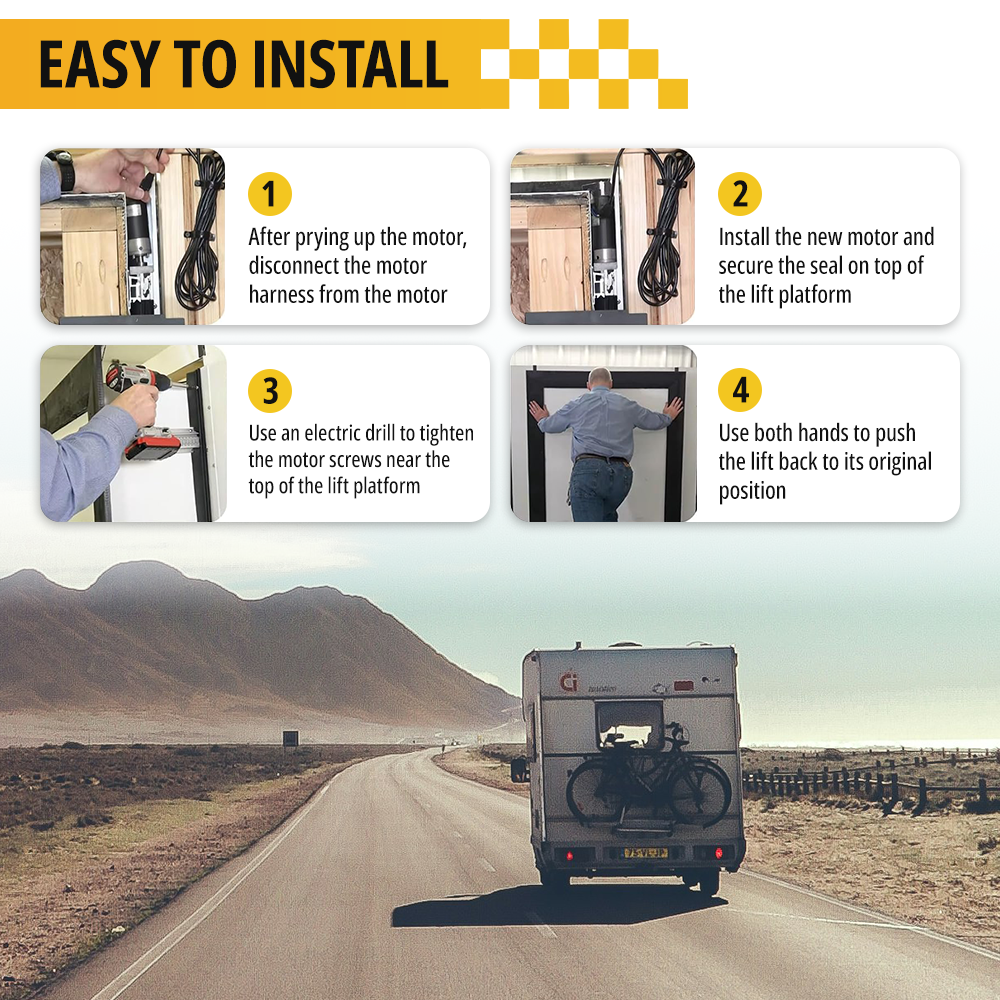

Installation Notice
Disconnect the RV battery and shore power before installation. Properly support the slide room and follow the applicable manufacturer service procedure. For dual motor applications, complete the prescribed synchronization procedure after installation. Professional installation is recommended.
Product Notice
This is an aftermarket replacement product. Lippert, Schwintek, In Wall, IG-42, and related part numbers are used only to identify compatibility. This product is not manufactured, sponsored, or endorsed by the original equipment manufacturer.
