Reference numbers can be helpful, but a reference number alone is not a complete fitment check. For an RV slide-out motor, the gear ratio, motor speed, electrical connection, actuator type, and mounting arrangement all need to agree with the system already installed.
Identify the through-frame configuration

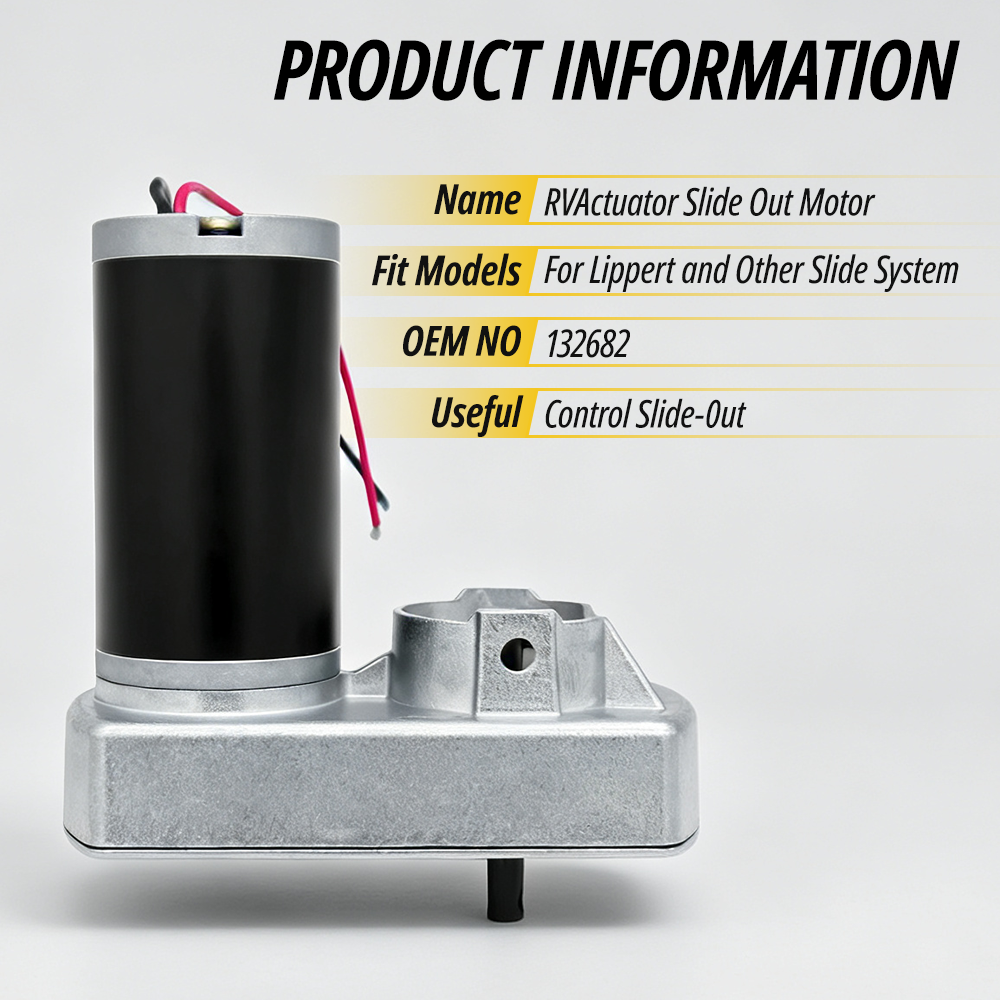

The Vypart 132682 18:1 RV slide-out motor lists RP785615, 7694597, and M8910 as reference numbers for compatible applications. It is a 12V DC motor with an 18:1 gear ratio and a 5800 RPM motor-speed specification for confirmed compatible Lippert electric through-frame slide-out systems.
Confirm what is included
This configuration is a motor-only replacement. The actuator, drive shaft, mounting hardware, and complete slide-out assembly are not included unless shown in the product images. Compare the existing unit carefully, especially where a similar reference number may be associated with a different speed or an actuator assembly.
Compare the three common drive paths
For a cable-driven BAL Accu Slide system, compare the existing assembly with the 225008 motor and gearbox assembly, including the sprocket orientation and tooth count. For a Schwintek in-wall system, verify the 10 mm shaft and 300:1 ratio of the 236575 slide-out motor. These are separate drive designs.
Do not overlook other RV systems
A separate low-pressure or faucet-flow issue may lead to a freshwater repair instead. The 12V 3.0 GPM, 55 PSI RV water pump is for compatible 12V freshwater systems and should be evaluated by its own voltage, port, pressure, and flow requirements.
Key takeaway: confirm the 18:1 ratio, motor-only configuration, wiring, mounting points, and actuator type before ordering a 132682 / RP785615 replacement.
