When an RV slide room stops moving, it is tempting to replace the most visible component. A correct repair starts with the system design and the original assembly details. The 225008 configuration is a motor-and-gearbox assembly for confirmed compatible BAL Accu Slide cable-driven systems, not a universal slide-out component.
Verify the complete assembly

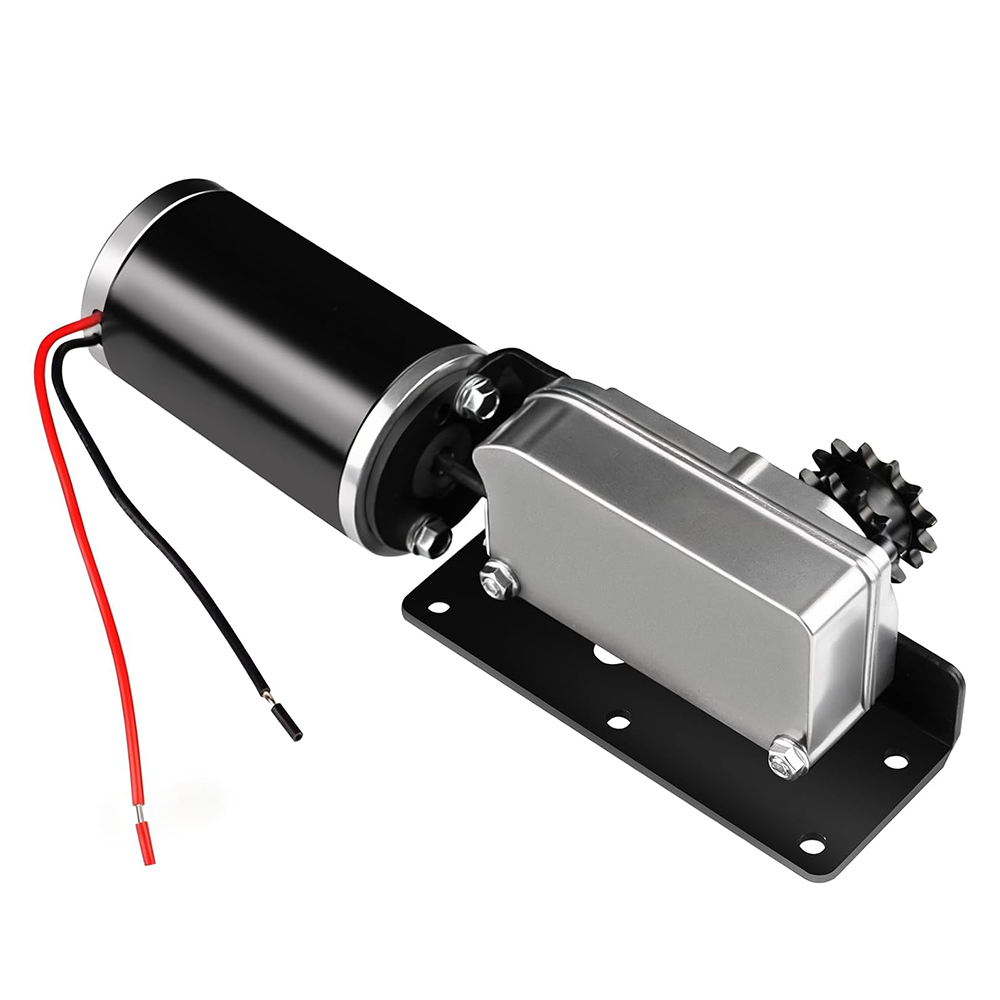

The Vypart 225008 12V motor and gearbox assembly includes the motor, gearbox, 13-tooth sprocket, and mounting bracket as an assembled replacement unit. Confirm the original 225008 or 21900002 reference, R25075 motor, R25076 or 25076-1 gearbox, sprocket-up orientation, 13-tooth sprocket, electrical connection, and mounting layout before ordering.
Rule out other faults
- Check battery voltage, fuses, switches, and wiring.
- Inspect cables, chains, drive shafts, and related moving parts.
- Make sure the slide room is properly supported before service.
- Mark cable and chain positions before removal and use the applicable service procedure.
Match the replacement to its drive system
A 225008 cable-driven assembly differs from an in-wall motor or a through-frame motor. If the RV uses a Schwintek in-wall design, compare the original motor with the 236575 300:1 slide-out motor. If it uses an electric through-frame design, verify the 132682 / RP785615 18:1 motor. Do not swap these components based on appearance alone.
Keep water-system service separate
For freshwater circulation issues, check the hydraulic and electrical ratings of the existing pump. The 12V 3.0 GPM, 55 PSI RV water pump is for compatible freshwater systems and is unrelated to the slide-out drive assembly.
Key takeaway: the safe replacement path is to confirm the complete 225008 configuration, support the room, disconnect power, and follow the applicable service procedure.
