Vypart Fuel Filter Water Separator Kit 68157291AA + 68436631AA for 2019-2024 Ram 6.7L Cummins
- ✓Fast & Free Shipping on orders over $50
- ✓30-Day Free Returns hassle-free
- ✓24/7 Customer Service always here to help
Got questions?
Feel free to get in touch
Help your customers identify what payments are accepted by your store.
| Year | Make | Model | Submodel | Engine | Location | Note |
|---|---|---|---|---|---|---|
| 2019-2024 | Ram | 2500/3500/4500/5500 with 6.7L Cummins Turbo Diesel engine |
- SKU 68157291AA (front) + 68436631AA (rear)
- Type Fuel Filter
- SKU 68157291AA (front) + 68436631AA (rear)

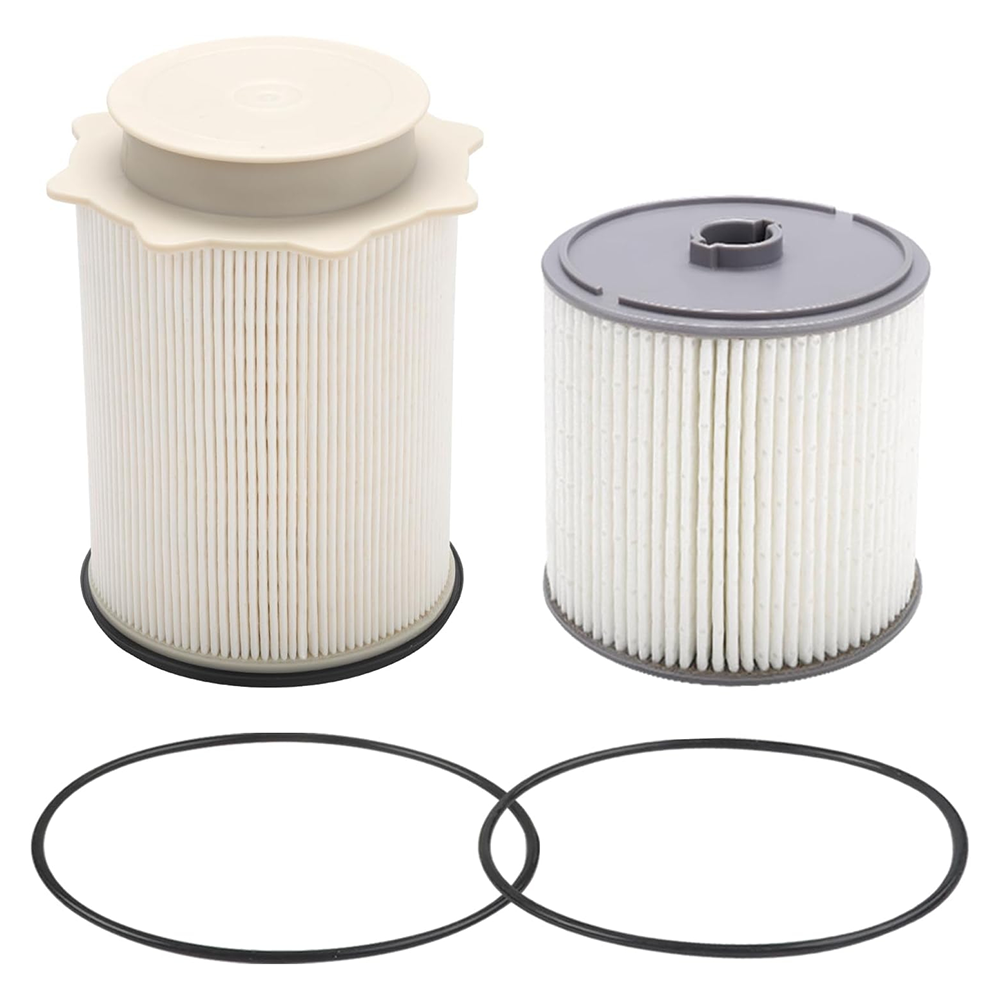

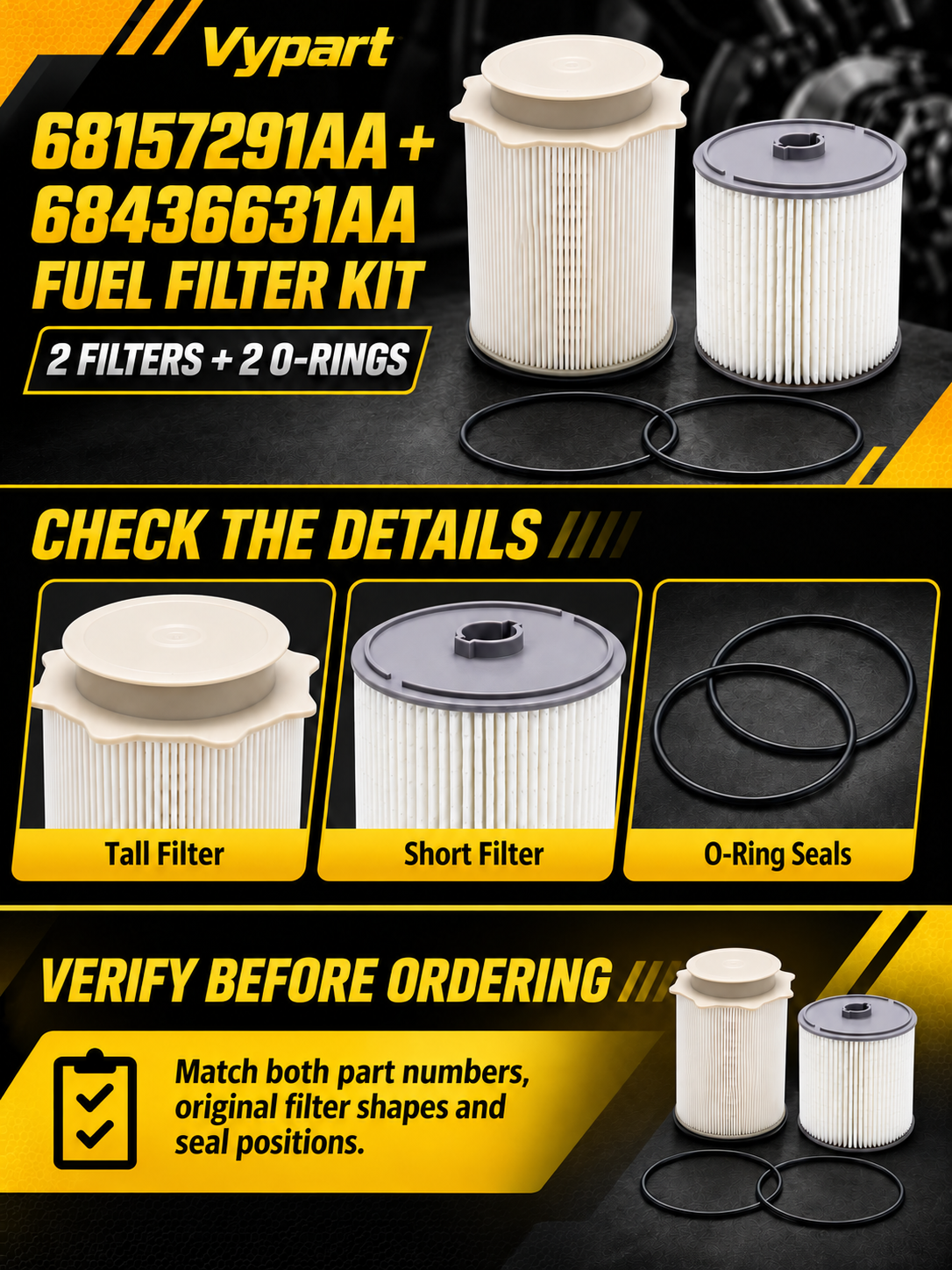

Package Includes
1 engine-mounted fuel filter.
1 chassis-mounted fuel and water separator filter.
2 replacement O-rings.
Reference Part Numbers
68157291AA, 68436631AA, 68065608AA, and PF46152.
Complete Dual-Filter Service Kit
This kit includes the two replacement filters used in compatible Ram 6.7L Cummins diesel fuel systems. It provides the components needed to replace both fuel filtration stages during routine maintenance.
Engine-Mounted Fuel Filter
The 68157291AA filter is installed on the engine. It provides an additional filtration stage before diesel fuel reaches sensitive fuel system components.
Chassis-Mounted Water Separator
The 68436631AA filter is installed on the chassis and functions as a fuel and water separator. It helps remove water, dirt, rust, and other contaminants from diesel fuel before the fuel moves through the system.
Replacement O-Rings Included
Two replacement O-rings are included to support proper filter installation. Replace the old O-rings during service and install the new seals in their correct locations according to the vehicle service procedure.
Vehicle Fitment
2019-2024 Ram 2500 with 6.7L Cummins Turbo Diesel engine.
2019-2024 Ram 3500 with 6.7L Cummins Turbo Diesel engine.
2019-2024 Ram 4500 with 6.7L Cummins Turbo Diesel engine.
2019-2024 Ram 5500 with 6.7L Cummins Turbo Diesel engine.
Specifications
Product Type: Diesel Fuel Filter and Water Separator Kit
Engine Application: 6.7L Cummins Turbo Diesel
Vehicle Application: Ram 2500, 3500, 4500, and 5500
Model Years: 2019-2024
Package Quantity: 1 Complete Two-Filter Set
Important Fitment Notice
This kit is intended for the 2019-2024 vehicle applications listed above. It is different from the 68197867AA filter kit used on many 2013-2018 Ram models.
Before ordering, compare both original filters, the filter housings, O-rings, and reference part numbers with the information above. Do not purchase based only on the vehicle model or engine size.
Installation Recommendation
Follow the vehicle manufacturer service procedure when replacing the filters. Clean the filter housings and surrounding areas before removal to help prevent contamination from entering the fuel system.
Install the new O-rings in their correct locations. Do not reuse seals that are damaged, stretched, pinched, or contaminated.
After installation, prime the fuel system according to the vehicle service procedure. Start the engine and inspect the filter housings and connections for fuel leaks before driving.
Professional installation is recommended if you are unfamiliar with diesel fuel filtration systems.
