Complete 13-Piece Front End Suspension Kit for 4WD and AWD GM Trucks and SUVs - Rebuild the entire front steering and suspension on your full-size GM truck or SUV with one boxed kit. Engineered to match OE geometry and spline counts for a true bolt-on restoration of steering precision, ride stability, and alignment.

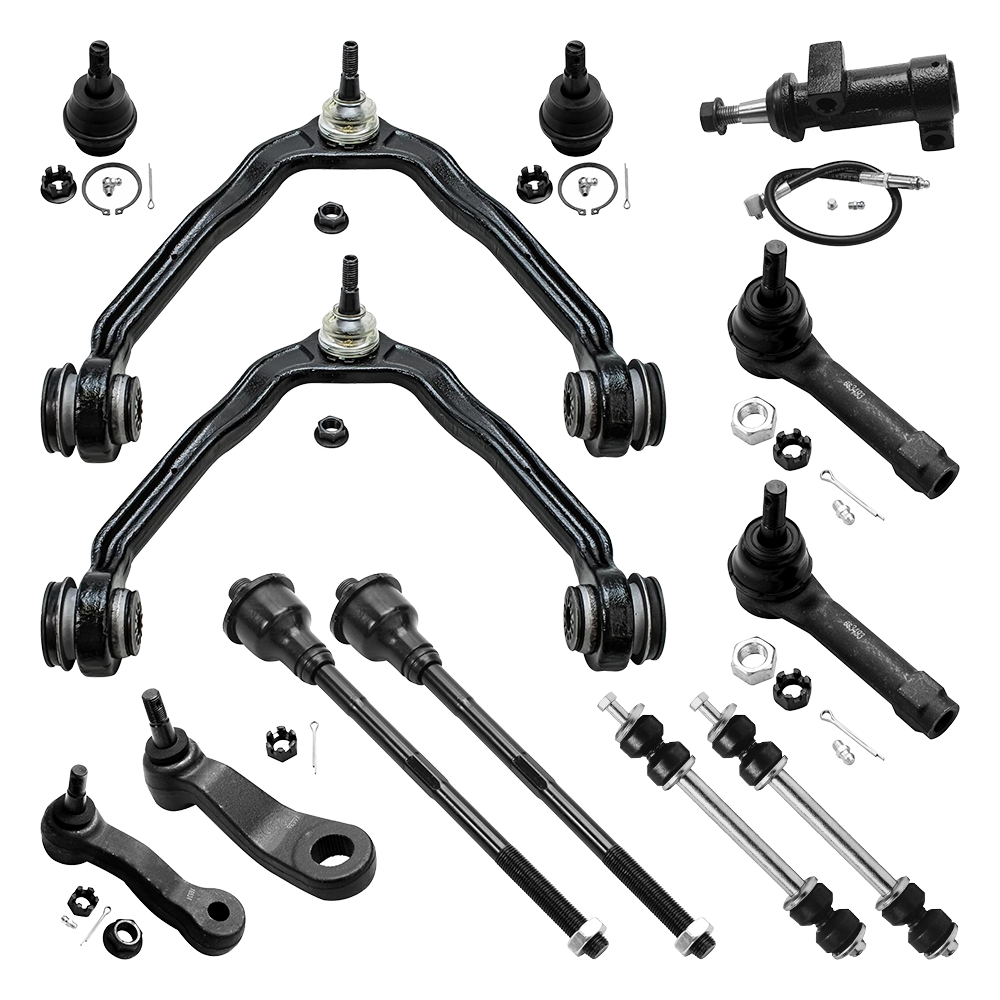

Kit Includes (13 Pieces - Both Sides)

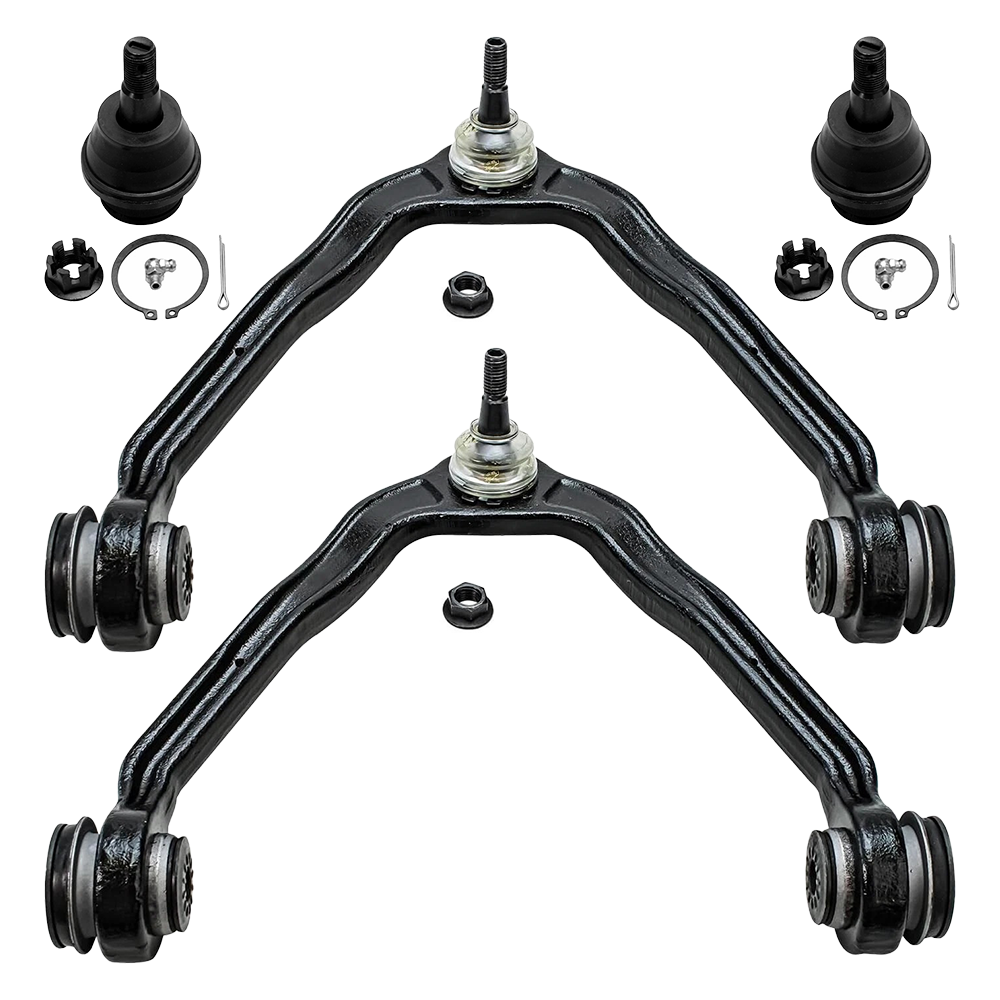

2x Front Upper Control Arms with Pre-Assembled Ball Joints (K80942)
2x Front Lower Ball Joints (K6541) - fits steel control arms only

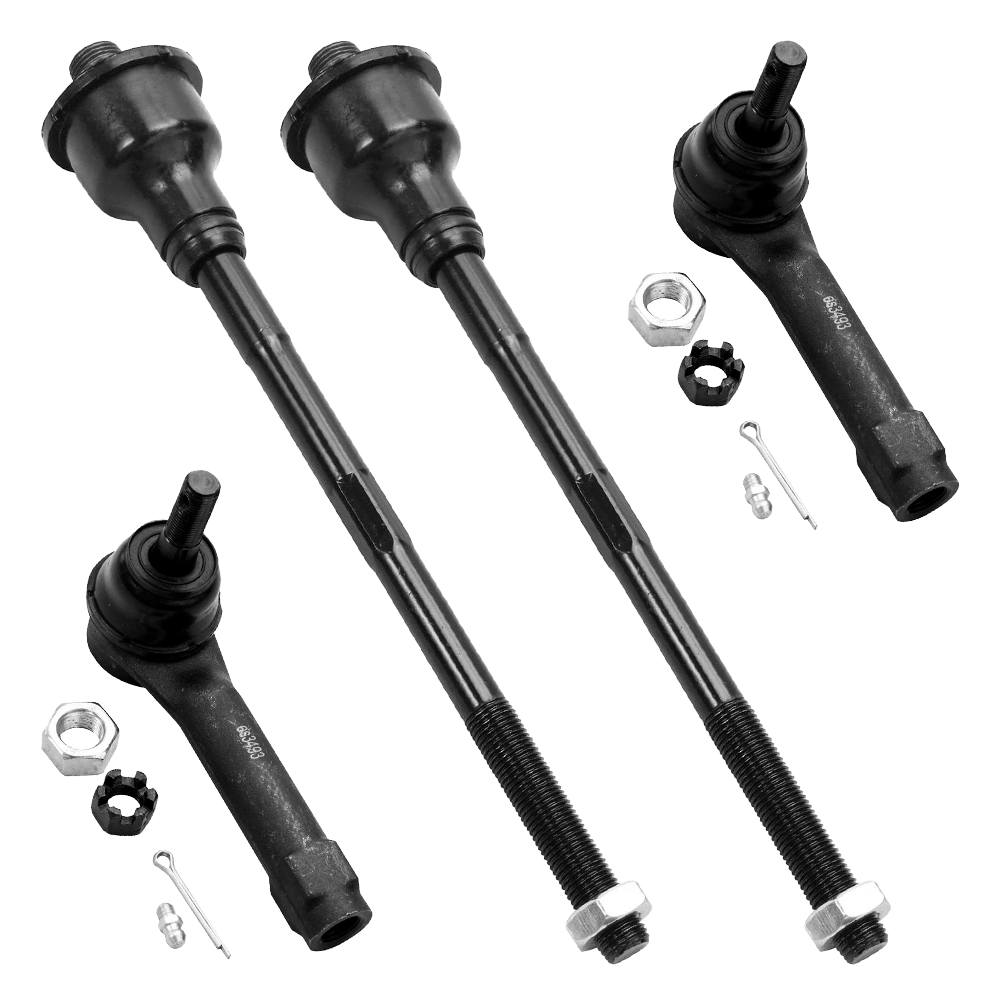

2x Front Outer Tie Rod Ends (ES3493T)
2x Front Inner Tie Rod Ends (ES3488)

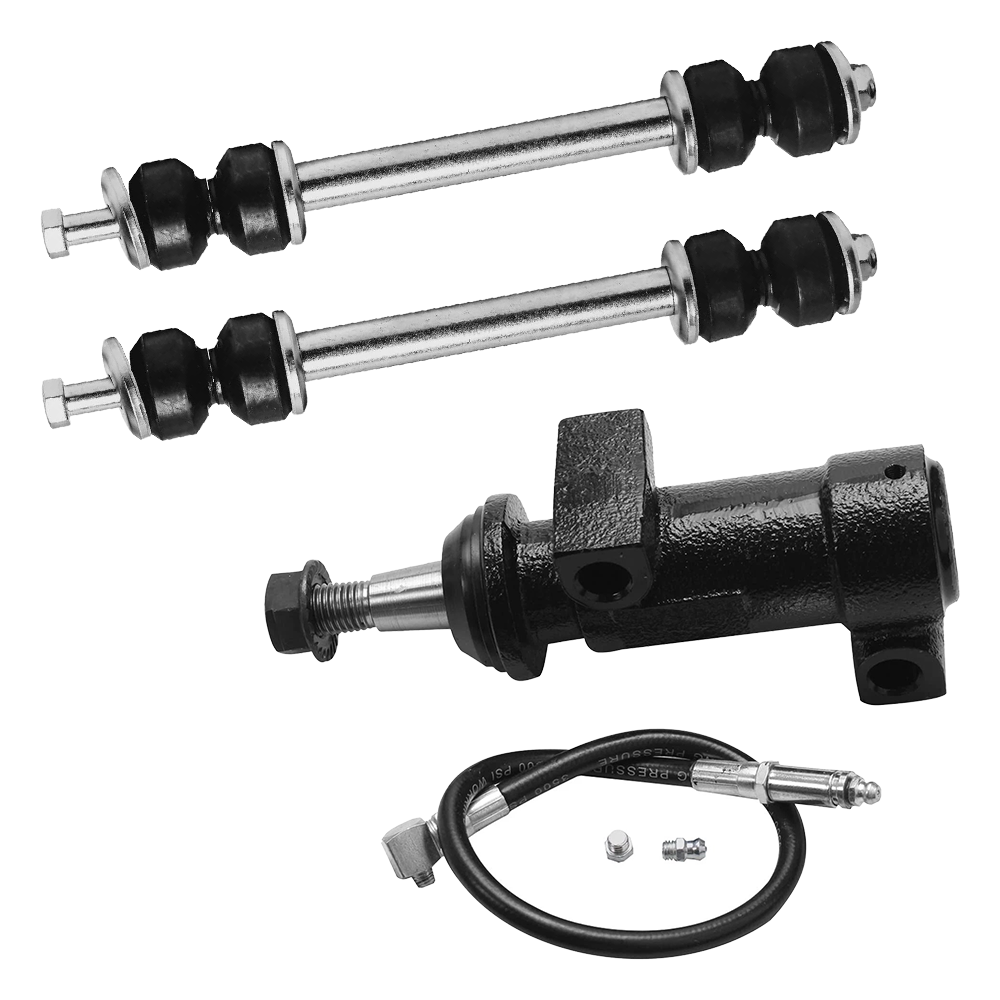

2x Front Sway Bar End Links (K80631)

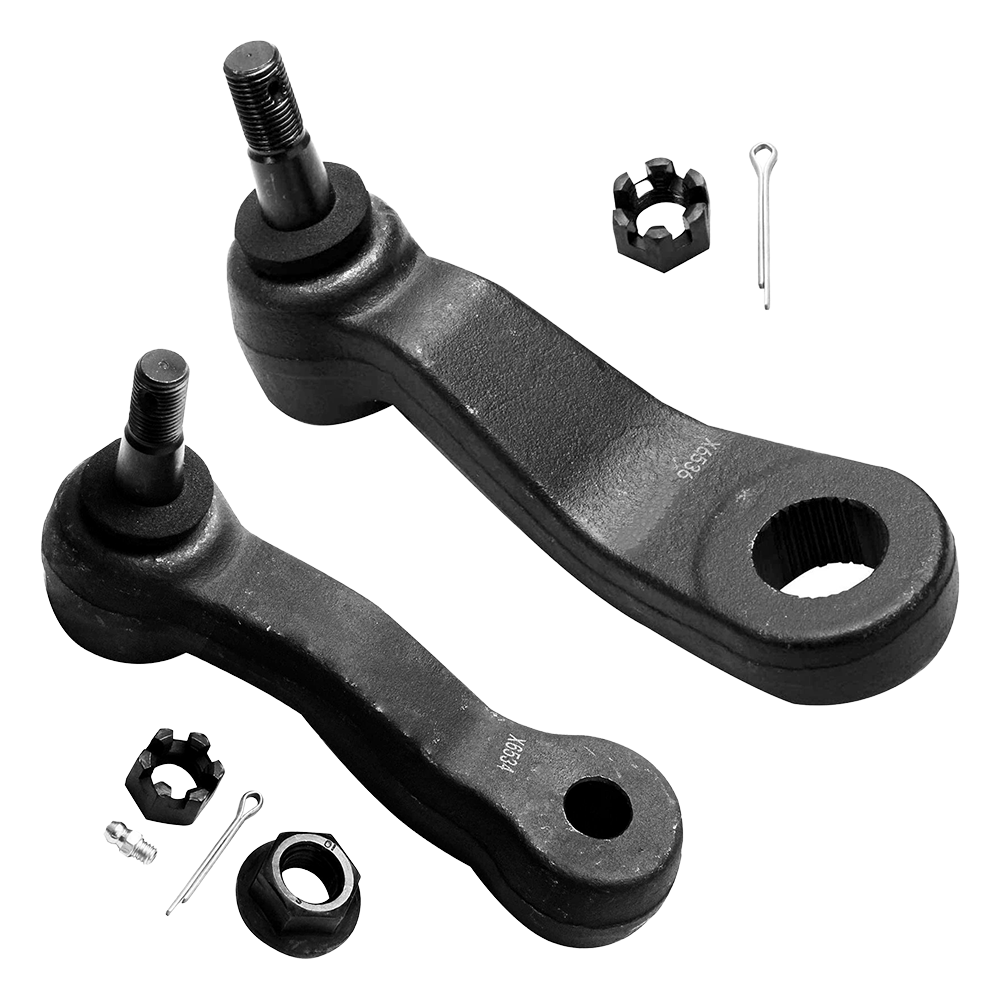

1x Pitman Arm with 4 Grooves (K6536)
1x Front Steering Idler Arm (K6534)
1x Idler Arm Bracket Pivot (K6659, interchanges K6723)

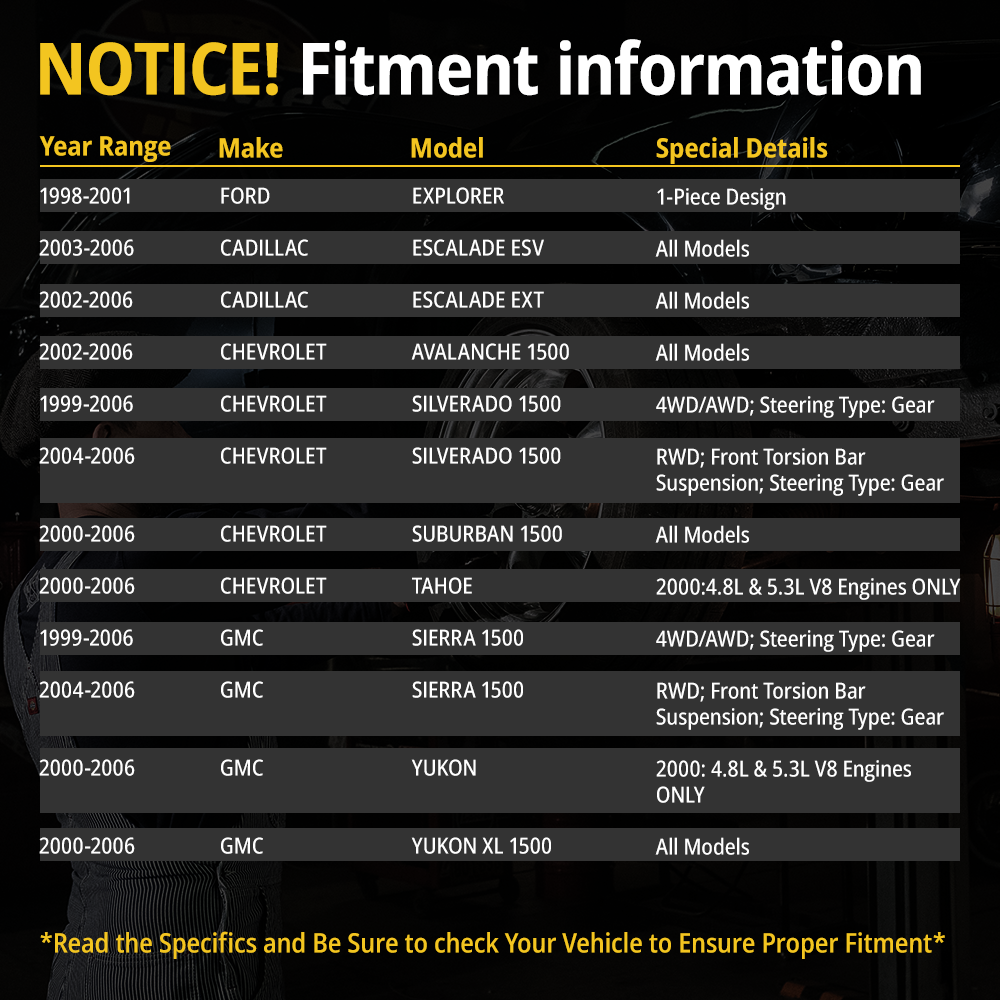

Vehicle Fitment
For 4WD / AWD Models Only - Fits Steel Control Arms (Not for Aluminum Arm Platforms)
Cadillac Escalade (2002-2006) AWD, Escalade ESV (2003-2006) AWD, Escalade EXT (2002-2006) AWD
Chevrolet Avalanche 1500 (2002-2006) 4WD
Chevrolet Silverado 1500 (1999-2006) 4WD
Chevrolet Suburban 1500 (2000-2006) 4WD
Chevrolet Tahoe (2000-2006) 4WD (2000 models: 4.8L and 5.3L V8 engines only, no Z71)
GMC Sierra 1500 (1999-2006) 4WD (2001-2006)
GMC Yukon (2000-2006) 4WD/AWD (2000 models: 4.8L and 5.3L V8 only, no Denali)
GMC Yukon XL 1500 (2000-2006) 4WD
Key Features & Benefits
Exact OE Match - Engineered to original specifications for a direct bolt-on replacement with no modifications required
Complete Front-End Rebuild in One Box - Upper control arms, lower ball joints, inner and outer tie rods, sway bar links, Pitman arm, and idler arms all included
High-Strength Steel Construction - Made from heavy-duty steel tubing with solid plate mounting brackets for superior strength under towing, hauling, and off-road loads
Pre-Assembled Ball Joints - Upper control arms come with ball joints already installed for faster, easier installation
Restores Steering and Ride Quality - Helps eliminate steering wander, clunking, uneven tire wear, and front-end vibration
Symptoms This Part Addresses
Loose or wandering steering and vague handling
Clunking or knocking from the front suspension over bumps
Uneven or premature tire wear
Excessive play in the steering wheel
Specifications
Brand: Vypart
Part Numbers: K80942, K6541, K80631, ES3488, ES3493T, K6536, K6534, K6659
Position: Front, Upper and Lower
Material: High-strength alloy steel
Finish: Corrosion-resistant black coating
Ball Joints: Pre-greased, ready to install
Bushings: Premium rubber, included and pre-installed
Fitment Type: Direct Replacement, 4WD/AWD only
Warranty: 12-Month Limited Warranty against defects in materials and workmanship
Important Fitment Notes - Please Verify Before Ordering
For 4WD and AWD Models Only - does not fit 2WD / RWD applications
Fits Steel Control Arms Only - not for aluminum arm platforms
Includes 4-Groove Pitman Arm - verify your steering box spline count before ordering
2000 Tahoe / Yukon: 4.8L and 5.3L V8 engines only - excludes Z71 (Tahoe) and Denali (Yukon)
Professional installation and alignment strongly recommended after installation
