Installing a new wheel hub is a critical task that directly impacts your vehicle's safety and performance. Whether you're a seasoned DIY enthusiast or a professional mechanic, following a meticulous process is paramount. A correctly installed wheel hub ensures smooth rotation, minimizes wear on surrounding components like brakes and tires, and, most importantly, guarantees the safety of your vehicle on the road. This guide will walk you through the essential steps, emphasizing the precision required for a successful installation.
Preparation: The Foundation of a Successful Installation
Before you begin, gathering the right tools and creating a safe working environment is crucial. The bearing, a central component of the hub assembly, is extremely sensitive to contaminants. Even a small amount of dirt can cause premature failure. Therefore, always work in a clean, well-lit area and have all necessary tools at hand .
Step-by-Step Installation Procedure
Step 1: Secure the Vehicle and Remove the Wheel
Park your car on a level, solid surface and engage the parking brake. Place wheel chocks behind the tires opposite the end you're working on. Loosen the lug nuts on the wheel you will be removing slightly before lifting the vehicle. Then, use the jack to lift the car and support it securely on jack stands. Once the vehicle is stable, fully remove the lug nuts and take off the wheel .
Step 2: Remove the Brake Caliper and Rotor
To access the wheel hub, you must first remove the brake caliper. Unbolt it carefully and hang it securely with a piece of wire—do not let it hang by the brake hose. Then, slide off the brake rotor . This is an excellent time to inspect the brake components for wear or damage .
Step 3: Remove the Old Hub Assembly
The removal process varies by vehicle. For many front-wheel-drive cars, this involves removing an axle nut, disconnecting the ABS sensor, and unbolting the hub assembly from the steering knuckle. The hub may be tight; a puller tool might be necessary to separate it from the knuckle . For rear hubs or trucks with full-floating axles, the process can be more complex, involving removing an axle shaft and a large, specially designed hub nut .
Step 4: Prepare and Install the New Hub

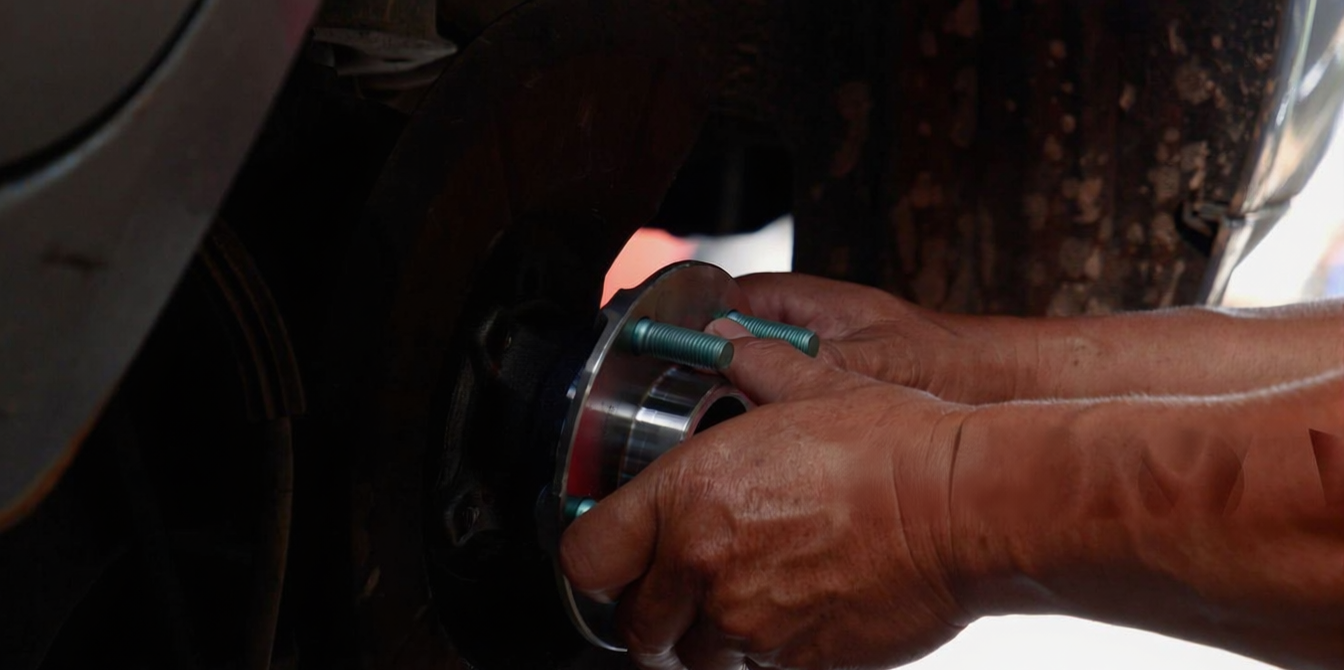

Thoroughly clean the mating surface on the steering knuckle where the new hub will sit. Any rust or debris can prevent the hub from seating properly. As you noted, installing the bearing (which is often part of a sealed hub assembly) in a clean environment is critical . Carefully place the new hub assembly onto the knuckle.
Critical Note: The specifications of all fasteners, especially the nut used to secure the hub to the axle, must be identical to the original vehicle's specifications. Using incorrect or substandard fasteners can lead to catastrophic failure .
Step 5: Tightening Fasteners with Precision Torque
This is the most critical step. Reinstall the bolts that secure the hub to the knuckle. Here is where your procedure is essential:
-
First, use a conventional cross wrench to tighten the bolts snugly. This ensures the hub is properly seated .
-
Then, use a torque wrench to tighten to the exact torque value specified by the vehicle manufacturer. This value can vary significantly between makes and models, ranging from about 74 lb-ft for some cars to over 180 lb-ft for trucks . Always consult the service manual for your specific vehicle. Over-tightening can damage the bearing and strip threads, while under-tightening can lead to the hub coming loose.
If your vehicle has an axle nut, install a new one (if recommended) and torque it to specification. For example, a 2003 Cadillac Escalade's axle nut is torqued to 184 lb-ft , while a Ford F-550 requires a specific multi-step adjustment process .
Step 6: Reassemble and Lower the Vehicle
Reinstall the brake rotor and caliper, tightening the caliper bolts to their specified torque . Mount the wheel back onto the hub, hand-tighten the lug nuts, and lower the vehicle until the tires just touch the ground. Finally, tighten the lug nuts in a star pattern to the vehicle's specified torque value .
Post-Installation Testing and Common Mistakes
Once the wheel hub is installed, your job isn't quite finished. A thorough verification is necessary.
-
Steering Check: Before driving, start the vehicle and, while stationary, turn the steering wheel fully to the left and right. Visually confirm that the tire does not contact any part of the car's body or suspension components . This ensures there is no interference that could cause damage while turning.
-
Test Drive and Inspection: Take the vehicle for a short, slow drive. Listen carefully for any unusual noises like grinding, humming, or clicking. Avoid hard braking and sharp turns initially. After the drive, re-check the torque on the lug nuts and hub bolts after a short distance, as they can settle .
Common mistakes to avoid include:
-
Ignoring Torque Specs: Guessing the torque or using an impact wrench for final tightening is a recipe for failure .
-
Working in a Dirty Environment: Contaminants are the number one enemy of wheel bearings .
-
Using Incorrect Fasteners: Always use replacement fasteners that meet the original equipment standards .
By following these detailed steps and prioritizing precision—especially with torque specifications and post-installation checks—you can ensure your wheel hub installation is safe, reliable, and long-lasting. When in doubt, always consult the official service manual for your vehicle or seek help from a professional mechanic.
