Head Gasket Replacement: Preparation and Common Mistakes

Replacing a head gasket is not simply a remove-and-replace task. The new gasket must seal combustion pressure while separating oil and coolant passages. Surface condition, fasteners, cleanliness and the exact tightening procedure are as important as the gasket itself.

Before disassembly

• Confirm the failure with appropriate testing rather than symptoms alone.
• Obtain the factory service information for the exact engine.
• Record timing marks, connector locations and hose routing.
• Verify all replacement parts before disabling the vehicle.
• Plan for fresh oil, filter and coolant after the repair.

Inspect what caused the failure

A new gasket may fail again if the root cause remains. Check the cooling fan, thermostat, radiator flow, water pump, pressure cap and any evidence of detonation or previous overheating. Once the head is removed, inspect both mating surfaces for erosion, cracks and warpage according to the service limit.

Five installation mistakes to avoid

1. Installing over a damaged or dirty surface

Old gasket material, oil, abrasive debris and deep scratches can create leak paths. Clean surfaces with methods approved for the engine material, protect open passages and never remove metal aggressively.

2. Skipping the flatness check

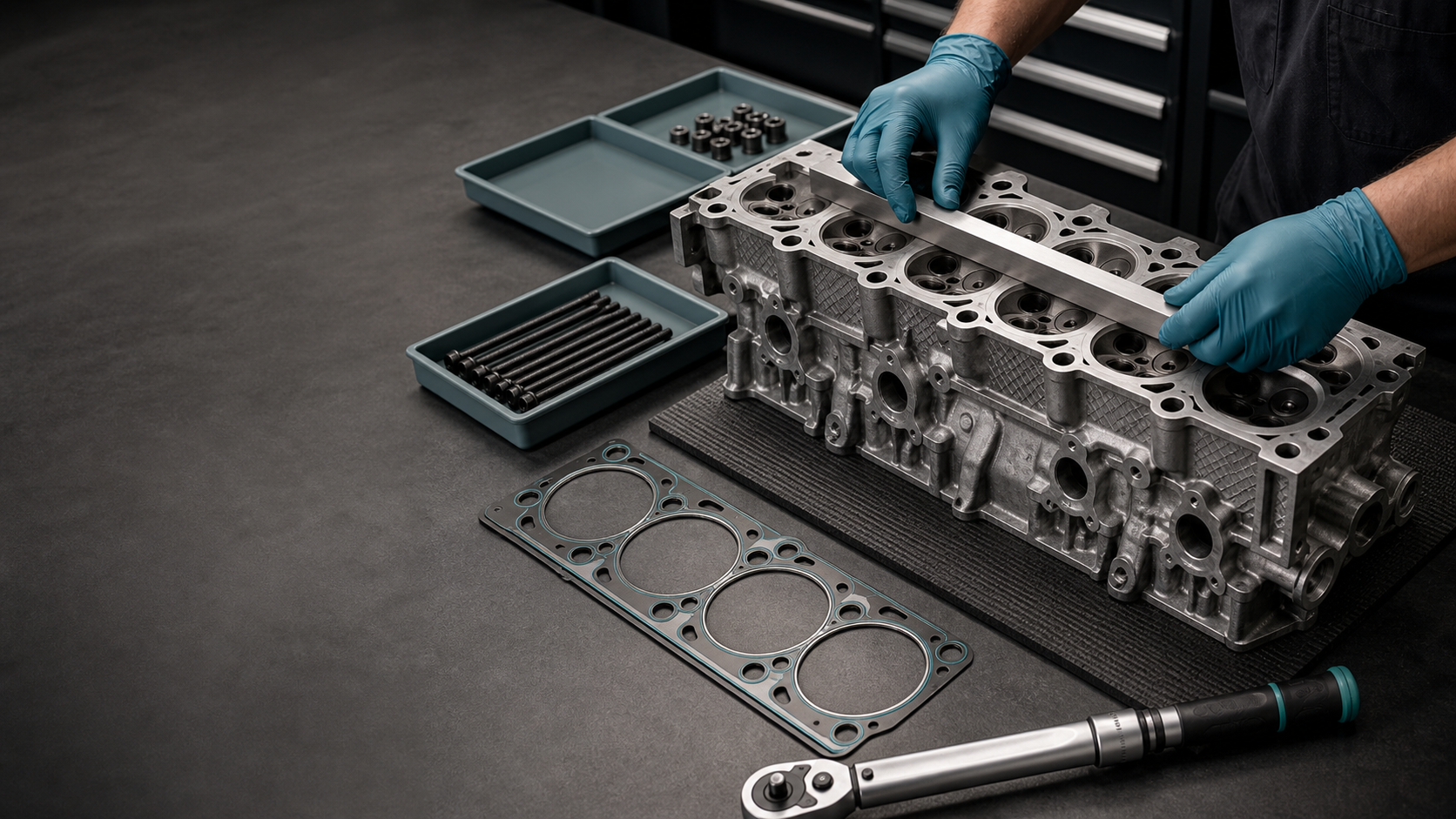

A visibly clean cylinder head can still be warped. Use the specified straightedge and feeler-gauge method or have a qualified machine shop inspect it. Resurfacing must remain within the engine manufacturer’s limits.

3. Reusing one-time-use bolts

Torque-to-yield bolts stretch to create the required clamp load. Reuse can produce an inaccurate load or bolt failure. Follow the service information and replace bolts whenever required.

4. Guessing the torque sequence

Cylinder-head fasteners often require staged torque plus one or more angle turns in a specific order. Use calibrated tools and the procedure for the exact engine. A specification for a similar engine is not a substitute.

5. Adding sealant where none is specified

Many modern multi-layer steel gaskets are installed dry. Unapproved sealant can alter clamp load, block a passage or prevent the sealing coating from working. Apply sealant only where the service manual or kit instructions require it.

Parts and tools checklist

• Correct head gasket or upper-engine gasket set
• New head bolts or studs when specified
• Intake, exhaust, valve-cover and timing-related seals disturbed by the job
• Torque wrench and angle gauge suited to the specification
• Approved cleaners, straightedge and feeler gauges
• Fresh engine oil, filter and correct coolant

After assembly

Rotate the engine by hand when the service procedure calls for it, refill fluids correctly, bleed the cooling system and check for leaks. Monitor temperature, coolant level and oil condition through the first heat cycles. If the engine runs poorly, overheats or builds abnormal cooling-system pressure, shut it down and diagnose the issue.

This is a planning guide, not an engine-specific repair procedure. Always follow the factory manual and applicable safety practices.
