Routine filter service on a 6.0L Power Stroke is more than a quick parts swap. The engine uses separate stages to manage fuel contamination, while the engine oil filter handles material carried through the lubrication system. Servicing these components together can simplify planning, but only when the parts match the truck and the work follows the correct service procedure.
This guide explains what is typically included in a combined filter kit, how to verify fitment, what to prepare before opening the housings, and which mistakes can turn an ordinary maintenance job into a leak or no-start situation. It is general information, so the vehicle's service manual remains the final authority for procedures, fluids, torque values, and maintenance intervals.
What a complete 6.0L filter service may include
A compatible 6.0L Power Stroke fuel system uses a frame-mounted primary filter/water separator and an engine-mounted secondary fuel filter. The primary stage helps remove water and larger contaminants. The secondary stage provides another level of filtration before fuel reaches sensitive system components.

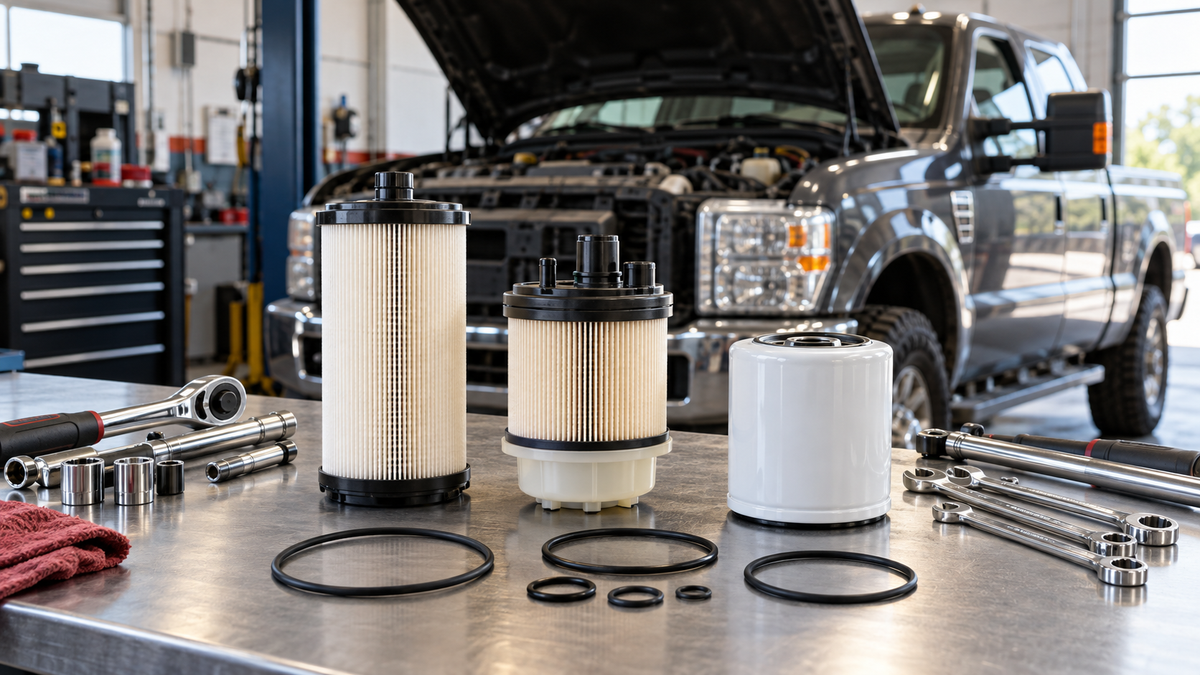

The engine oil filter is a separate service item. It captures contaminants circulating in the oil and should be replaced using the procedure specified for the vehicle. A combined kit can place all three filters and the required sealing rings in one package, reducing the chance that a technician begins the job with a missing component.
For an all-in-one fitment candidate, review the FD4616 fuel filter and FL2016 oil filter kit for the Ford 6.0L Power Stroke. The listing includes a frame-mounted fuel filter/water separator, an engine-mounted secondary fuel filter, an FL2016-style oil filter, and sealing rings. It is an aftermarket replacement kit, not a Ford or Motorcraft product.
Vehicles listed for this filter combination
The Vypart product page lists the kit for these 6.0L diesel applications:
- 2003–2007 Ford F-250 Super Duty
- 2003–2007 Ford F-350 Super Duty
- 2003–2007 Ford F-450 Super Duty
- 2003–2007 Ford F-550 Super Duty
- 2003–2005 Ford Excursion
That list is a starting point, not a substitute for a full fitment check. A vehicle badge alone does not establish compatibility. Confirm the model year, engine, original filter configuration, and reference numbers before ordering.
Part numbers to compare before purchase
Useful reference numbers on the product page include FD4616, FD4604, FL2016, 3C3Z-9N184-CA, 3C3Z-9N184-CB, and 3C3Z-6731-AA. Cross-reference numbers can help narrow a search, but they should not be treated as interchangeable without confirming the exact application.
Before purchase, compare:
- The full year, make, model, and engine
- The shape and connection points of both removed fuel filters
- The oil-filter style and housing arrangement
- Every reusable cap, sensor, drain, or connector
- The supplied O-rings and the grooves where they install
- Legible numbers on the old filters or service records
If any detail differs, stop and verify the application rather than forcing a similar-looking filter into the housing.
Prepare the work area before opening the system
Diesel fuel systems are sensitive to contamination. Clean the outside of each housing and the surrounding area before loosening anything. Dirt that falls into an open housing can bypass the very filter being installed.
Gather the tools and supplies specified by the service manual. Depending on the vehicle and work area, that may include appropriate sockets, a drain container, clean lint-free towels, eye and hand protection, replacement seals, and the correct engine oil. Keep new filters covered until the housings are ready.
Work on a stable surface with the engine off and cooled as directed. Diesel fuel and used engine oil must be captured, stored, and disposed of according to local requirements. Do not work near flames, sparks, or other ignition sources.
A practical service sequence
The exact sequence varies by vehicle and service information, but a careful workflow generally includes these stages:
- Verify the replacement parts against the vehicle and removed components.
- Clean around the filter housings, caps, and drain areas.
- Drain the water separator or housing as the manual directs.
- Remove the old filters without allowing debris into the open system.
- Remove old sealing rings and confirm none remain stuck in a groove.
- Install the new filters and seals in the correct orientation.
- Replace the engine oil filter as part of the oil-service procedure.
- Reassemble each housing using the specified tightening method.
- Prime the fuel system according to the vehicle procedure.
- Start the engine only after priming, then inspect carefully for leaks.
Do not copy a torque value or priming routine from another model year. Use the instructions for the exact vehicle being serviced.
Common mistakes to avoid
Reusing an old O-ring
An old seal may look serviceable but can be flattened, hardened, stretched, or nicked. Replace the specified seals and install them in the correct grooves. A misplaced seal can leak even when the cap appears tight.
Installing a seal dry when lubrication is required
Follow the service procedure for seal preparation. If lubrication is specified, use only the approved clean fluid. The wrong lubricant can affect the seal or introduce contamination.
Overtightening a filter cap
More force does not create a better seal. Overtightening can damage a cap, housing, or threads. Tighten components using the method and value in the service information.
Skipping fuel-system priming
Opening the fuel system introduces air. Use the documented priming process before cranking. Repeated cranking is not a replacement for the proper procedure and can create additional problems.
Assuming a no-start is normal
If the engine does not start after the approved priming process, stop and recheck filter seating, seals, caps, connectors, and the service steps. Do not continue cranking indefinitely.
What to inspect after service
With the engine running, observe the serviced areas from a safe position. Look and smell for fuel or oil leakage. Check that caps and connectors remain secure, and watch the instrument panel for warning messages. Shut the engine off immediately if a significant leak appears.
After a short drive, recheck the areas once the vehicle is safely parked. A clean paper towel can help reveal fresh fluid around a housing, but keep hands, clothing, and tools away from hot or moving components.
Build the service around verified fitment
The most convenient kit is still the wrong choice if the engine, year, or filter configuration does not match. Start with the vehicle record and original parts, compare the reference numbers, and use the manufacturer's service procedure for installation.
You can also browse the Vypart fuel and motor oil collection to compare the four available diesel filter kits by engine family and model-year range.
Safety note: Diesel fuel and engine-oil service can involve hot components, pressurized systems, hazardous fluids, and fire risk. This article is general information. Follow the vehicle manufacturer's service instructions and consult a qualified diesel technician when the procedure or fitment is uncertain.
